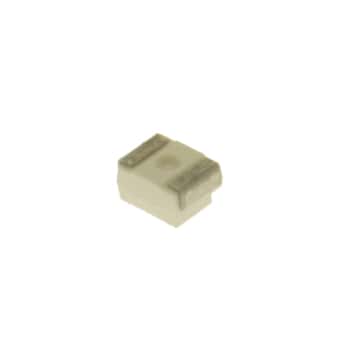

White Surface Mount Hyper Bright LEDs PLCC-2 LWT673 Osram

White Surface Mount Hyper Bright LEDs PLCC-2 LWT673 Osram

Manufacturer: Osram
Part Number: LWT673-R1T1-5C5D
Package: PLCC-2
Lead/Terminal Type: Surface Mount
Color: White

Price: $0.50
1107 available for immediate delivery
Code: CS225PD
Volume Pricing
Quantity Price Each
1-9$0.50
10-99$0.46
100+$0.40
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


White SMT Hyper Bright LED

Features:
Very Wide Viewing Angle
Typical Color Temperature: 6500K
Color Reproduction Index: 80
Optical Efficiency: 6 Im/W
Soldering Methods: IR Reflow and TTW

Characteristics:
Luminous Intensity: 112-140mcd
Luminous Flux: 380mlm typ.
Chromaticity coordinate x acc. to CIE 1931 (IF = 20 mA): 0.32
Chromaticity coordinate y acc. to CIE 1931 (IF = 20 mA): 0.31
Viewing angle at 50 % IV: 120 deg.
Forward voltage (IF = 20 mA): 2.9V min. ; 3.5V typ. ; 3.9V max.
Reverse current (VR = 5 V): 0.01uA typ. ; 10uA max.
Optical efficiency (IF = 20 mA): 6Im/W typ.

Applications:
Outdoor Displays
Backlighting (LCD, switches,keys,displays,illuminated advertising)
Interior and exterior automotive lighting
Substitution of micro incandescent lamps,reading lamps
Emergency lighting
Signal and symbol luminaire
Marker lights (e.g. steps, exit ways, etc.)
Scanners

Manufactured by: Osram
Part Number: LWT673-R1T1-5C5D

Full Datasheet: LWT673-R1T1-5C5D
