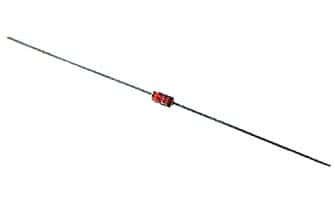

1N914 200mA 100V Small Signal Diode Axial Lead

1N914 200mA 100V Small Signal Diode Axial Lead

Manufacturer: Fairchild
Part Number: 1N914
Amps: 0.2
Voltage: 100
Lead/Terminal Type: Axial

Price: $0.10
3029 available for immediate delivery
Code: DI229PD
Volume Pricing
Quantity Price Each
1-9$0.10
10-99$0.07
100+$0.05
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


Axial Lead Signal Diodes
Package: DO-35

Max. Ratings (25�C unless otherwise noted)
Max. Repetitive Reverse Voltage: 100V
Average Rectified Forward Current: 200mA
DC Forward Current: 300mA
Recurrent Peak Forward Current: 400mA
Non-repetitive Peak Forward Surge Current:
Pulse Width = 1.0 second, 1A ; 1�s, 4A
Operating Junction Temperature: 175�C

Electrical Specs:
Power Dissipation: 500mW
Breakdown Voltage:IR = 100�A,100V min. ; IR = 5.0�A,75V min.
Forward Voltage @ 10mA:1V max.
Reverse Leakage @ 20V: 25nA max.
Reverse Recovery: 4 ns
(IF = 10mA, VR = 6.0V (600mA),Irr = 1.0mA, RL = 100Ω)
Total Capacitance(VR = 0, f = 1.0MHz): 4pF

Manufactured by: Fairchild
Part number: 1N914

Full datasheet: 1N914
