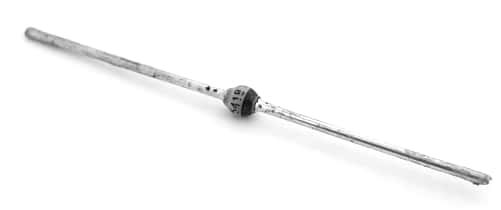

1N5418 3A 3 Amp 400V Fast Avalanche Rectifier Diode
Some images are stock photos close Manufacturer: Telefunken (Vishay) Part Number: 1N5418 Amps: 3 Voltage: 400 Lead/Terminal Type: Axial	Price: $0.50 994 available for immediate delivery Product code: DI256PD
	Volume Pricing Quantity Price Each 1-9 $0.50 10-99 $0.45 100+ $0.40
	Quantity: First Class Mail Shipping Costs: Order Total Minimum Order Total Maximum USA First Class Shipping Rates $00.01 $15.00 $3.50 $15.01 $25.00 $5.50 $25.01 $35.00 $6.50 $35.01 $45.00 $8.50 $45.01 $55.00 $9.50 $55.01 $75.01 $11.50 $75.01 $100.00 $12.50 $100.01 $200.00 $14.50 $200.01 $300.00 $15.50 $300.01 $500.00 $17.50 $500.01 + $18.50 Priority Mail Shipping Costs: Order Total Minimum Order Total Maximum USA Priority Mail Shipping Rates $00.01 $15.00 $8.50 $15.01 $25.00 $10.50 $25.01 $35.00 $11.50 $35.01 $45.00 $12.50 $45.01 $55.00 $13.50 $55.01 $75.01 $14.50 $75.01 $100.00 $16.50 $100.01 $200.00 $18.50 $200.01 $300.00 $21.50 $300.01 $500.00 $24.50 $500.01 + $25.50 View shipping costs
Item Specifications and Additional Information: Fast Avalanche Rectifier Diodes Sintered Glass Case, SOD-64 Plated Axial Leads, Solderable per MIL-STD-750, Method 2026 Color Band denotes Cathode End Max. Ratings: (@ 25°C unless otherwise noted) Max. Repetitive Peak Reverse Voltage: 400V Max. Average Forward Rectified Current: 3.0A Peak Forward Surge Current: 100A (10ms single half sine-wave) Non Repetitive Reverse Avalanche Energy (I(BR)R=1A: 20mJ Operating Junction & Storage Temperature: -55°C to 175°C Electrical Specs: Max. Instantaneous Forward Voltage: IF=3A,1.10V ; IF=9A,1.5V Reverse Current (VR=VRRM): 1.0µA Max. Reverse Recovery Time: 75ns typ. ; 100ns max. (IF=0.5A, IR=1.0A, Irr=0.25A) Features: Glass passivated junction Hermetically sealed package Soft recovery characteristics Low reverse current Low forward voltage drop High pulse current capability RoHS Compliant Manufactured by: Telefunken (Vishay) Part number: 1N5418 Full datasheet: 1N5418
