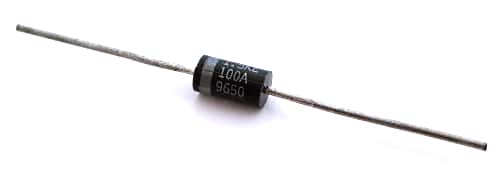

1N6295A 1.5KE100A 200A 85.5V TVS Zener Diode Mosorb

1N6295A 1.5KE100A 200A 85.5V TVS Zener Diode Mosorb

Manufacturer: Motorola® (On Semiconductor®)
Part Number: 1N6295A
Amps: 200
Voltage: 85.5
Watts: 1500
Package: 41A
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Black
Temperature: 175°C
Shape: Round (Cylindrical)
Termination Method: Solder

Price: $1.05
12 available for immediate delivery
Code: DI266PD
