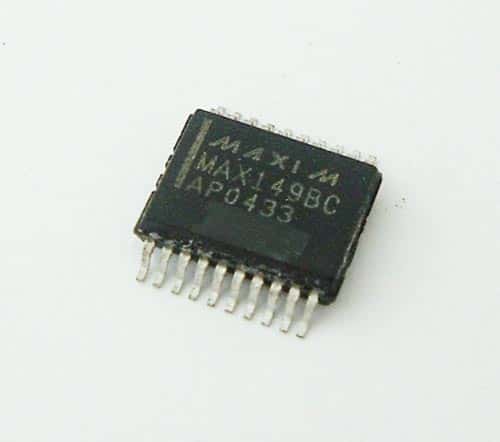

MAX149BCAP-T ADC Single SAR 133KSPS IC Maxim

MAX149BCAP-T ADC Single SAR 133KSPS IC Maxim

Manufacturer: Maxim
Part Number: MAX149BCAP-T
Package: SSOP
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 20

Price: $9.15
314 available for immediate delivery
Code: IC513PE04
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$9.15
10-99$8.30
100+$7.15
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

ADC Single SAR 133KSPS ICs
20 Pin SSOP

Description / Additional Information

Features:
- 8-Channel Single-Ended or 4-Channel Differential Inputs
- Single-Supply Operation: +2.7V to +5.25V
- Internal 2.5V Reference
- Low Power:
--- 1.2mA (133ksps, 3V Supply)
--- 54μA (1ksps, 3V Supply)
--- 1μA (Power-Down Mode)
- SPI/QSPI/MICROWIRE/TMS320-Compatible 4-Wire Serial Interface
- Software-Configurable Unipolar or Bipolar Inputs

Electrical Characteristics:

DC Accuracy
Resolution: 10 Bits min.
Relative Accuracy: ±1.0LSB max.
Gain Temperature Coefficient: ±0.25ppm/°C

Dynamic Specs
Signal-to-Noise + Distortion Noise: 66dB
Channel-to-Channel Crosstalk (65kHz, 2.500VP-P): -75dB
Small Signal Bandwidth (-3dB rolloff): 2.25MHz

Conversion Rate
Track/Hold Acquisition Time: 1.5us max.
Aperture Delay: 30ns typ.
External Clock Frequency: 2.0MHz max.

Internal Reference (Reference Buffer Enabled)
VREF Output Voltage (TA=25°C): 2.500V typ.
VREF Short-Circuit Current: 30mA max.
Capacitive Bypass at VREF (External compensation mode): 4.7uF min.

External Refernece at VREF (Buffer Disabled)
VREF Input Voltage Range: 1.0 to VDD+50mV
VREF Input Current (VREF=2.5V): 100uA typ.
VREF Resistance: 25kΩ typ.

Power Requirements:
Positive Supply Voltage: 2.7V to 5.25V
Positive Supply Current
- Operating mode, full scale input (VDD-5.25V): 1.6mA typ.
- Full power-down (VDD=5.25V): 3.5uA typ.
- Fast power-down: 30uA typ.

Applications:
- Portable Data Logging
- Data Acquisition
- Medical Instruments
- Battery-Powered Instruments
- Pen Digitizers
- Process Control

Manufactured by: Maxim
Part Number: MAX149BCAP-T

Full Datasheet: MAX149BCAP-T
