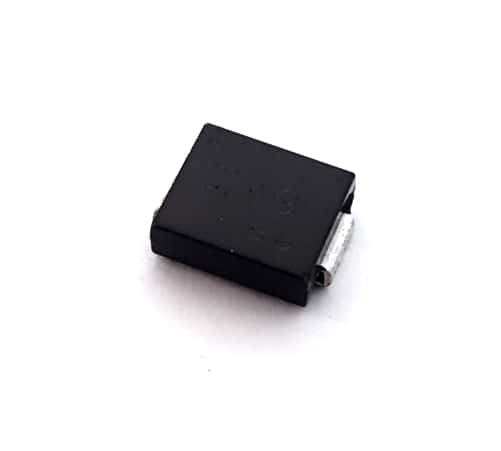

SMLJ58CA-TR13 58V TVS Diode Micro Commercial

SMLJ58CA-TR13 58V TVS Diode Micro Commercial

Manufacturer: Micro Commercial
Part Number: SMLJ58CA-TR13
Voltage: 58
Watts: 3000
Package: DO-214AB
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 2
RoHS Compliant: Yes

Price: $1.05
1580 available for immediate delivery
Code: IC532PE05
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$1.05
10-99$0.95
100+$0.85
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Transient Voltage Suppressor Diodes
Military

Description / Additional Information

Features:
- Low inductance
- Built-in strain relief
- Glass passivated junction
- Excellent clamping capability
- Repetition Rate( duty cycle): 0.5%
- Fast response time: typical less than 1ps from 0V to BV min
- High temperature soldering: 250oC/10 seconds at terminals

Mechanical Data:
Case: JEDEC DO-214AB molded plastic body over passivated junction
Terminals: solderable per MIL-STD-750, Method 2026

Electrical Characteristics@25°C unless otherwise noted:
Revere Stand-Off Voltage: 58V
Breakdown Voltage @ 1mA: 64.4V min. ; 71.2V max.
Maximum Clamping Voltage @ 32A: 93.6V
Maximum Reverse Leakage @ 58V: 5uA

Manufactured by: Micro Commercial
Part Number: SMLJ58CA-TR13

Full Datasheet: SMLJ58CA-TR13

RoHS Compliant
