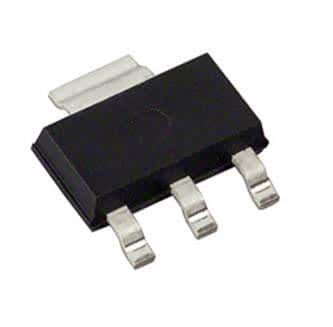

NDT3055L 4A 60V N-Channel MosFET Transistor Motorola

NDT3055L 4A 60V N-Channel MosFET Transistor Motorola

Manufacturer: Motorola
Part Number: NDT3055L
Amps: 4
Voltage: 60
Package: SOT-223
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 3
Color: Black
Termination Method: Solder

Price: $0.49
383 available for immediate delivery
Code: IC701APH04
Weight: 0.02oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.49
10-99$0.44
100+$0.39
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

MosFET Transistors
N-Channel

The following information was obtained from the attached Fairchild data sheet.

The NDT3055L is a logic level N-Channel enhancement mode power field effect transistor.The high cell density DMOS technology minimizes on-state resistance and provides excellent switching performance. The device also withstands high energy pulse in the avalanche and commutation modes.

For use in low voltage applications such as DC motor control and DC/DC conversion where fast switching, low in-line power loss, and resistance to transients are needed.

Features:
4 A, 60 V
- RDS(ON) = 0.100 W @ VGS = 10 V
- RDS(ON) = 0.120 W @ VGS = 4.5 V
Low drive requirements allowing operation directly from logic drivers. VGS(TH) < 2V
High density cell design for extremely low RDS(ON)
High power and current handling capability

Electrical Characteristics (TA=25°C unless otherwise noted):
(See data sheet for conditions)

OFF Characteristics:
Drain-Source Breakdown Voltage: 60V min.
Breakdown Voltage Temp. Coefficient: 55mV/°C typ.
Zero Gate Voltage Drain Current: 1.0uA max.
Gate - Body Leakage, Forward: 100nA max.

ON Characteristics:
Gate Threshold Voltage: 1.6V typ.
Gate Threshold Voltage Temp. Coefficient: -4.0mV/°C typ.
Static Drain-Source On-Resistance: 0.07Ω typ.
On-State Drain Current: 10A min.
Forward Transconductance: 7 sec. typ.

DYNAMIC Characteristics:
Input Capacitance: 345pF typ.
Output Capacitance: 110pF typ.
Reverse Transfer Capacitance: 30pF typ.

DRAIN-SOURCE DIODE Characteristics and Maximum Ratings
Maximum Continuous Drain-Source Diode Forward Current: 2.5A max.
Drain-Source Diode Forward Voltage: 0.8V typ.

Manufactured by: Motorola
Part Number: NDT3055L

For reference only, we are providing a datasheet for this part number, please note it is from a different manufacturer. West Florida Components assumes no liability for this information.

Full Fairchild Datasheet: Motorola N-Channel MosFET Transistors NDT3055L
