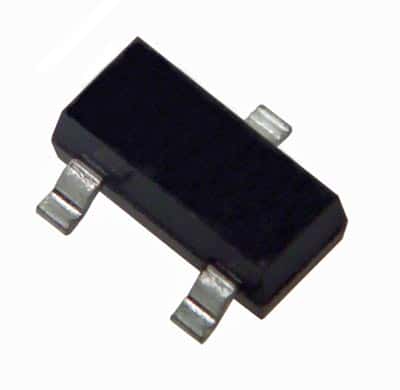

MMBZ15VDLT1 40W Zener Transient Voltage Suppressor Diode ON Semiconductor

MMBZ15VDLT1 40W Zener Transient Voltage Suppressor Diode ON Semiconductor

Manufacturer: ON Semiconductor
Part Number: MMBZ15VDLT1
Voltage: 15
Watts: 40
Package: SOT-23
Mounting: Surface Mount
Lead/Terminal Type: Gullwing
Number Leads/Terminals: 3
Material: Plastic
Termination Method: Solder

Price: $0.10
2870 available for immediate delivery
Code: IC776APH07
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.10
10-99$0.08
100-499$0.06
500+$0.04
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Zener Transient Voltage Suppression Diodes

Features:
- Unidirectional
- Dual Common Cathode
- ESD Rating of Class N (exceeding 16 kV) per the Human Body Model
- Low Leakage < 100 nA
- Flammability Rating: UL 94 V-O

Maximum Ratings
Peak Power Dissipation @ 1.0 ms @ TL ≤ 25°C: 40W
Total Power Dissipation on FR-5 Board@ TA = 25°C: 225mW
- Derate above 25°C: 1.8mW/°C
Thermal Resistance Junction-to-Ambient: 556°C/W
Total Power Dissipation on Alumina Substrate @ TA = 25°C: 300mW
- Derate above 25°C: 2.4mW/°C
Thermal Resistance Junction-to-Ambient: 417°C/W
Junction and Storage Temperature Range: -55°C to 150°C
Lead Solder Temperature - Maximum (10 Second Duration): 260°C

Electrical Characteristics (TA=25°C unless otherwise noted):
Working Peak Reverse Voltage: 12.8V
Maximum Reverse Leakage Current @ VRWM: 100nA @ 12.8V
Breakdown Voltage @ 1.0mA:
- Minimum: 14.3V
- Nominal: 15.0V
- Maximum: 15.8V
Clamping Voltage @ IPP: 21.2V @ 1.9A
Breakdown Voltage @ IT: 12mV/°C @ 1.0mA

Applications:
- Computers
- Printers
- Business Machines
- Communication Systems

Manufactured by: ON Semiconductor
Part Number: MMBZ15VDLT1

Full Datasheet: SMT Zener Diode Array MMBZ15VDLT1 ON Semi
