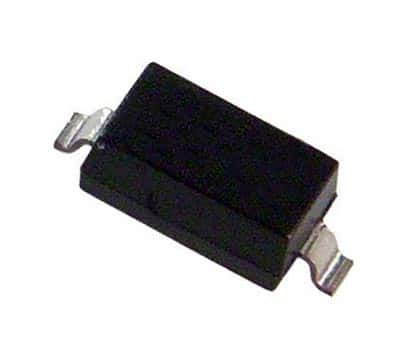

MMSZ5248BT1 SMT Zener Diode Motorola

MMSZ5248BT1 SMT Zener Diode Motorola

Manufacturer: Motorola
Part Number: MMSZ5248BT1
Voltage: 18
Watts: .5
Package: SOD-123
Lead/Terminal Type: Gullwing
Number Leads/Terminals: 2

Price: $0.50
2800 available for immediate delivery
Code: J236APF07
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.50
10-99$0.45
100-499$0.40
500+$0.35
