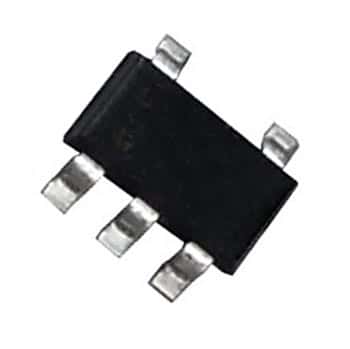

MM1320KNRE SMT Microminiature Regulator IC Mitsumi

MM1320KNRE SMT Microminiature Regulator IC Mitsumi

Manufacturer: Mitsumi
Part Number: MM1320KNRE
Package: SOT-25A
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 5

Price: $1.50
2780 available for immediate delivery
Code: J263APF08
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$1.50
10-99$1.25
100+$1.00
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Microminiature Regulator ICs

This IC is a microminiature low-noise stabilized power supply device featuring a highly precise output voltage and a small input/output voltage difference of only 0.15V at an output current of 60mA. The IC delivers output currents of up to 200mA, and through use of a noise pin output noise is diminished even further. An on/off pin can be used to turn the output on and off.

Features
- Input/output voltage difference 0.15V typ. (IO=60mA)
- Output noise voltage 30μVRMS typ. (Cn=0.01μF)
- Maximum output current 150mA max.
- No-load input current 170μA typ.
- With internal overcurrent protection and thermal shutdown circuits
- Output on/off control function High : ON, Low : OFF

Maximum Ratings
Power supply current: -0.3V to 12V
Output current: 200mA
Power consumption: 150mW

Recommended Operating Conditions
Output current: 150mA
Operating voltage: 1.8V to 10.0V
Operating temperature: -20°C to 75°C

Typical Electrical Characteristics (Except where noted otherwise, Ta=25°C)
Output voltage (VIN=VOUT+1V, Io=30mA): Vout
No-load consumption current (VIN=VOUT+1V, Io=0mA): 170uA
Input current while off (VIN=VOUT+1V, Vcont=0V): 1uA max.
I/O voltage difference (VIN=VOUT-0.2V, Io=60mA): 0.15V
Input fluctuations (VIN=VOUT+1V~5V, Io=30mA): 10mV
Load fluctuation (Io=0~100mA, VIN=VOUT+1V): 30mV
Output voltage temperature coefficient (Tj=-20~+75°C, Io=30mA, VIN=VOUT+1V): 100ppm/°C
Ripple rejection rate (VIN=VOUT+1V, f=120Hz, VRIPPLE=1V, Io=30mA): 60dB
Output noise voltage(VIN=VOUT+1V, f=20~80kHz): 30uVrms
CONT pin current while off (Vcont=0.4V): 1.0uA
CONT pin current while on (Vcont=1.6V): 5.0uA
CONT pin high level: 1.6V to VIN+0.3V
CONT pin low level: -0.3V to 0.4V

Applications
- Cordless phones
- Portable phones, PHS
- Portable minidiscs
- Other portable equipment which uses batteries

Manufactured by: Mitsumi
Part Number: MM1320KNRE

Full Datasheet: Mitsumi SMT Regulator IC MM1320KNRE
