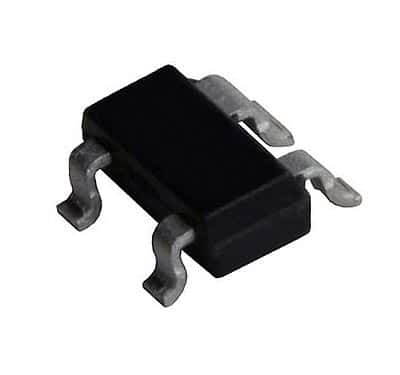

MIC811TU Microprocessor Reset Circuit IC Micrel

MIC811TU Microprocessor Reset Circuit IC Micrel

Manufacturer: Micrel
Part Number: MIC811TU
Package: SOT143
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 4

Price: $0.35
2919 available for immediate delivery
Code: J287APF07
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.35
10-99$0.30
100-499$0.25
500+$0.20
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Microprocessor Reset Circuit ICs

The MIC811 is a microprocessor supervisory circuit that monitors power supplies in microprocessor based systems. It has an active low/RESET output. The purpose of this device is to force a reset if the power supply drops below a designated reset threchold or /MR is forced low.

Features:
- Precision voltage monitor for 3.0V, 3.3V, or 5.0V power supplies
- /RESET remains valid with VCC s low as 1.0V
- 5.0uA typical supply current
- Manual reset input

Electrical Characteristics for Typical Values (VCC = 3.3V, -40°C ≤ TA ≤ 85°C unless noted otherwise)
Operating Voltage Range: 1.0V to 5.5V
Supply current (VCC = 3.3V, no load): 10.0uA max.
Reset Voltage Threshold: 3.00V min. ; 3.15V max.
Reset Timeout Period: 140ms min. ; 560ms max.
/RESET Output Voltage VOH (ISOURCE = 500uA): 0.8 x VCC min.
/RESET Output Voltage VOL (VCC = VTH min. ; ISINK = 1.2mA): 0.3V max.
/MR Minimum Pulse Width: 10us min.
/MR to Reset Delay: 0.5us typ.
/MR Input Threshold VIH: 0.7V x VCC min.
/MR Input Threshold VIL: 0.25 x VCC max.
/MR Pull-Up Resistance: 10kΩ min. ; 30kΩ max.
?MR Glitch Immunity: 100ns typ.

Applications:
- Portable equipment
- Intelligent Instruments
- Critical microprocessor power monitoring
- Printers/computers
- Embedded controllers

Manufactured by: Micrel
Part Number: MIC811TU

Full Datasheet: Micrel MIC811TU
