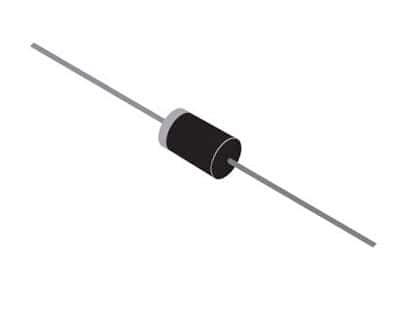

1.5KE10CA 10V TVS Diode General Semiconductor

Manufacturer: General Semiconductor
Part Number: 1.5KE10CA
Voltage: 10
Lead/Terminal Type: Axial
Number Leads/Terminals: 2

Price: $0.38
1390 available for immediate delivery
Code: J352APF09
Weight: 0.03oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.38
10-99$0.35
100-499$0.32
500+$0.28
Quantity:
