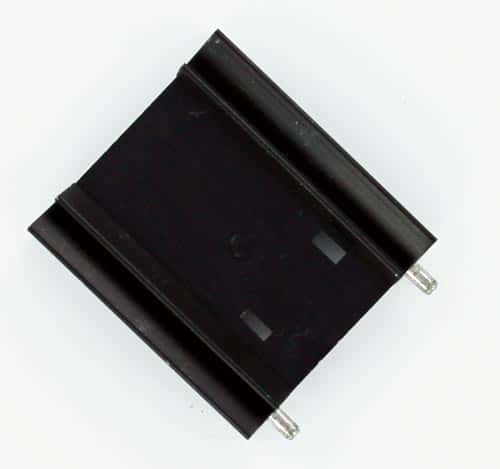

TO220 Vertical Mount Heat Sink Wakefield 667-15ABPP
Manufacturer: Wakefield
Part Number: 667-15ABPP
Package: TO-220
Mounting: Vertical
Number Leads/Terminals: 2
Material: Aluminum
Color: Black
Price: $2.00
28 available for immediate delivery
Code: J526APH06
Weight: 0.60oz
Additional Information
Vertical Mount HeatsinksClips NOT included
Series 667
For use with TO-220 package
Thermal Performance @ Typical Load
Natural convection: 66�C @ 6.0W
Forced Convection: 5.5�C/W @ 200LFM
Dimensions:
Height (above board): 38.1mm (1.5")
Width: 34.9mm (1.375")
Depth: 12.7mm (0.5")
Pin Length: 4.0mm (0.156")
Pin Diameter: 2.4mm (0.093")
Manufactured by: Wakefield
Part Number: 667-15ABPP
