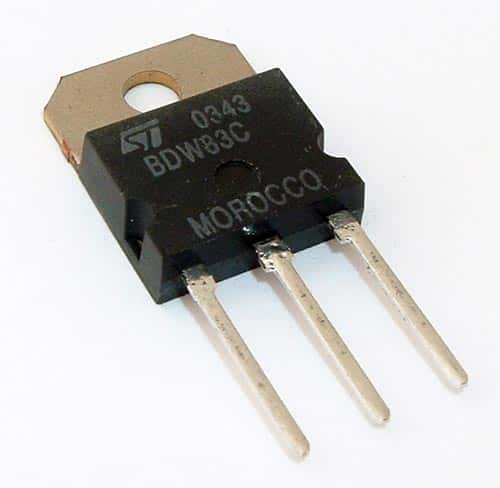

BDW83C 15A 100V NPN Darlington Transistor ST Micro

BDW83C 15A 100V NPN Darlington Transistor ST Micro

Manufacturer: STMicroelectronics
Part Number: BDW83C
Amps: 15
Voltage: 100
Watts: 130
Package: TO-247
Mounting: Through Hole
Lead/Terminal Type: Radial
Number Leads/Terminals: 3
Color: Black
Temperature: 150
Termination Method: Solder

Price: $2.40
48 available for immediate delivery
Code: J634APK06
Weight: 0.10oz ONZ
Volume Pricing
Quantity Price Each
1-99$2.40
100+$2.30
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Power Monolithic Darlington Transistors
NPN
For use in linear and switching industrial equipment.

Features:
- High Current Capability
- Fast Switching Speed
- High DC Current Gain

Collector-base voltage (IE= 0): 100V max.
Collector-emitter voltage (IB= 0): 100V max
Emitter-base voltage (IC=0): 5.0V max.
Collector current: 15A max.
Collector peak current: 40A max.
Base current: 0.5A max.
Total dissipation at Tc≤25°C: 130W
Collector cut-off current(IE=0): 500uA max.

Manufactured by: STMicroelectronics
Part Number: BDW83C

Full Datasheet: 100V Darlington Power Transistors BDW83C
