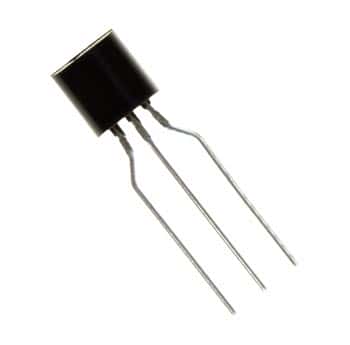

2N5210 .1A 50V NPN General Purpose Transistor Fairchild

2N5210 .1A 50V NPN General Purpose Transistor Fairchild

Manufacturer: Fairchild
Part Number: 2N5210
Amps: .1
Voltage: 50
Package: TO-92
Mounting: Through Hole
Lead/Terminal Type: Radial
Number Leads/Terminals: 3
Material: Plastic
Color: Black
Termination Method: Solder

Price: $0.10
1188 available for immediate delivery
Code: J681APK11
Weight: 0.10oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

General Purpose Amplifier Transistors
NPN

This device is designed for low noise, high gain, general purpose amplifier applications at collector currents from 1μA to 50 mA.

Maximum Ratings
Collector-Emitter Voltage: 50V
Collector-Base Voltage: 50V
Emitter-Base Voltage: 4.5V
Collector Current - Continuous: 100mA

Thermal Characteristics
Total Device Dissipation: 6.25mW
Derate above 25°C: 5.0mW/°C
Thermal Resistance, Junction to Case: 83.3°C/W
Thermal Resistance, Junction to Ambient: 200°C/W

OFF Characteristics
Collector-Emitter Breakdown Voltage: 50V min.
Collector-Base Breakdown Voltage: 50V min.
Collector Cutoff Current: 50nA max.
Emitter Cutoff Current: 50nA max.

ON Characteristics
DC Current Gain (IC= 100μA, VCE= 5.0 V): 200 min. ; 600 max.
Collector-Emitter Saturation Voltage: 0.7 V max.
Base-Emitter On Voltage: 0.85V max.

SMALL SIGNAL Characteristics
Current Gain - Bandwidth Product: 30MHz min.
Collector-Base Capacitance: 4.0pF max.
Small-Signal Current Gain: 250 min. ; 900 max.

Manufactured by: Fairchild
Part Number: 2N5210

Full Datasheet: Fairchild Amplifier Transistors 2N5210
