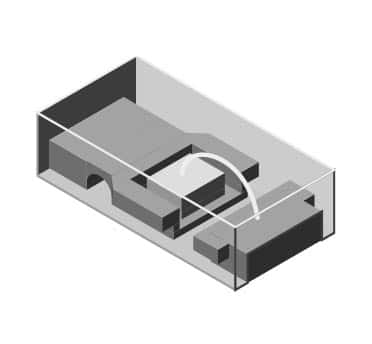

Red Surface Mount LED 0603 Vishay TLMS1100-GS08

Red Surface Mount LED 0603 Vishay TLMS1100-GS08

Manufacturer: Vishay
Part Number: TLMS1100-GS08
Capacitance (uF): .000015
Voltage: 2.1
Package: 0603
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 2
Color: Red
Shape: Rectangle
Termination Method: Solder
Luminous Intensity (mcd): 63

Price: $0.20
2991 available for immediate delivery
Code: LED208APH03
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.20
10-99$0.18
100+$0.15
