Item Specifications and Additional Information:

Linear Power Supplies
International Version
Part Dated 1990
Original Box & Datasheet
Open Frame
Single Output

Specs:
AC Input(Vac):
- 100=87min, 110max
- 120=104.4min, 132max
- 220=191.4min, 242max
- 230/240=207min, 264.5max
DC Output: 15V @ 1.5A
Adjustment: �5% min.
Line Regulation: �.05% for a 10% input change
Load Regulation; �.05% for a 50% load change
Output Ripple: 5mV Pk-Pk max.
Transient Response: 50�s for 50% load change
Overload & Short Circuit Protection: Automatic current limit/foldback
Stability: �.05% for 24 Hours after Warm-up
Temperature Coefficient:�.01%/�C max.

Manufactured by: Condor
Part number: HBB15-1.5-A+

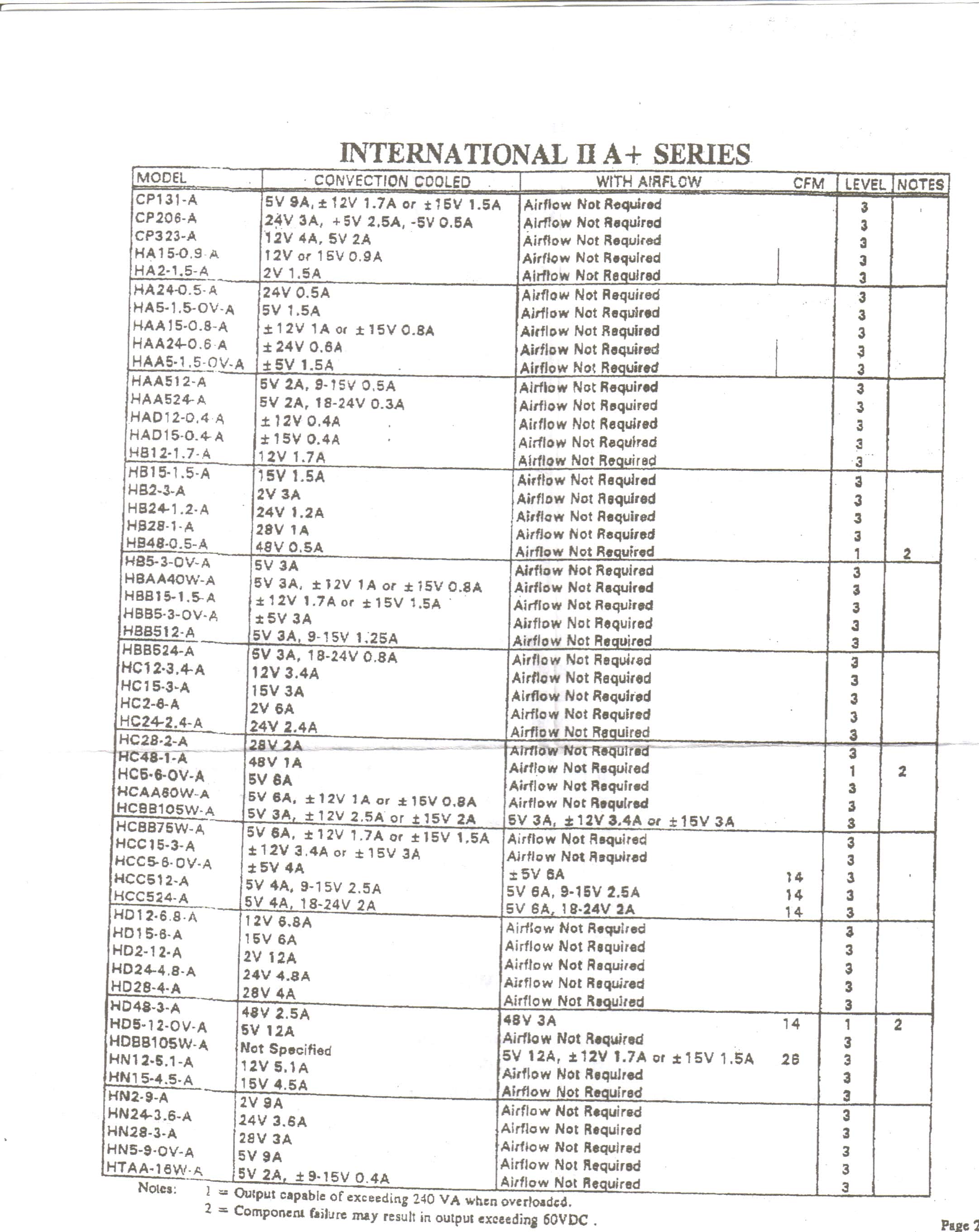

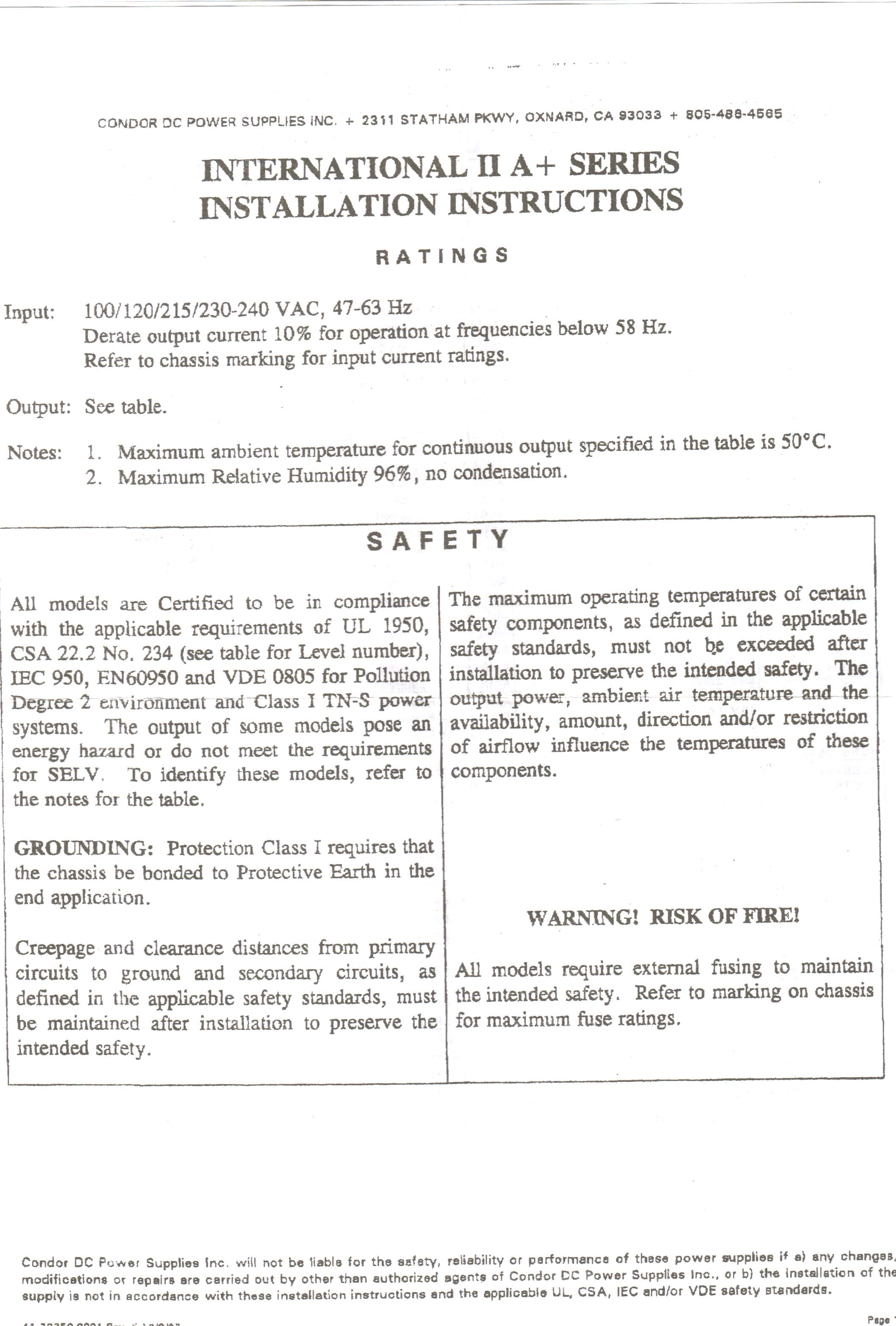

Full datasheet: HBB15-1.5-A Pg 1 , HBB15-1.5-A Pg 2 , HBB15-1.5-A Pg 3 , HBB15-1.5-A Pg 4 , HBB15-1.5-A Pg 5 , HBB15-1.5-A Pg 6
