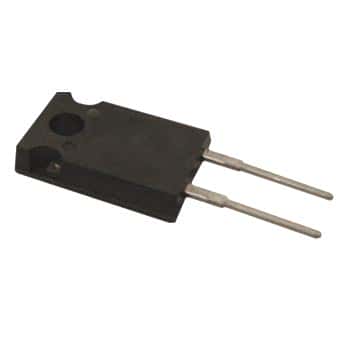

30W 0.5 ohm .5 ohm Power Film Resistor Caddock

30W 0.5 ohm .5 ohm Power Film Resistor Caddock

Manufacturer: Caddock
Part Number: MP930-0.50-1%
Watts: 30
Ohms: 0.5
Tolerance (%): 1
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Material: Film

Price: $4.50
68 available for immediate delivery
Code: R098PD
Volume Pricing
Quantity Price Each
1-9$4.50
10+$4.30
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


Power Film Resistors
MP900 Kool-Pak� Series
Non-Inductive
TO-220 Package

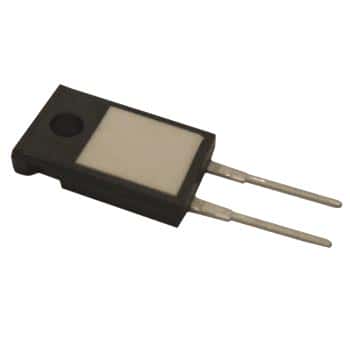

The MP930 features an exposed ceramic heat dissipating mounting surface. The surface is constructed with Caddock's Micronix� resistive film which is fired onto a flat ceramic substrate. This is mounted in the package so that the resistor element and the area where the terminals attach to the substrate are all covered in the molded body leaving the other side of the ceramic exposed but flush with the back of the resistor.

Specs:
Power Rating: 30W
Resistance: 0.5Ω
Tolerance: 1%
Max Voltage: 250V
Thermal Resistance Film to Case: 4.17�C/Watt
Max. Temperature: 150�C

Approx. Dimensions:
Length: .64 in. (16.26mm)
Width: .41 in. (10.41mm)
Thickness: .125 in. (3.18mm)
Terminal Length: .50 in. (12.7mm)

Manufactured by: Caddock
Part Number: MP930-0.50-1%

Full Datasheet: MP930-0.50-1%

RoHS Compliant
