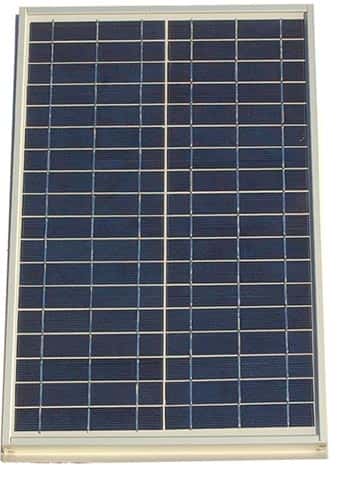

20W Solar Panel 12V Mono-Crystalline
|
| |
|
Price: $169.50
Quantity in Basket:
None
39 available for immediate delivery
Product code: SL004
|
| |
A heavy duty anodized frame provides strength and convenient mounting access.
Cells are laminated between high transmissivity, low-iron, 3mm tempered glass and sheet
tedlar-polyester-tedlar 'TPT' material by two sheets of
ethylene Vinyl acetate 'EVA'. This protects
against moisture penetrating into the module.
The low profile junction box on the underside allows a flush mounting on a flat surface.
SPECS:
Output Power (peak): 20W
Max Power Voltage (Vmp): 17.6V
Max Power Current (Imp): 1.14A
Open Circuit Voltage (Voc): 21.6V
Short Circuit Current (ISC): 1.23A
Working Temperature: -45 to +85°C
Tolerance: +/-5%
Size: 530mm x 340mm x 28mm (20.866" x 13.385" x 1.102")
Recommended Controller: 12V-5A (available for purchase)
Suggest applications for the 12V solar panels:
Security Cameras
Remote Telemetry Units
SCADA
Monitoring
Fence Charger
Gate Opener
Intelligent Traffic Systems
General Battery Charging Applications
In automotive, RV or boat applications, 12V solar panels provide enough power to trickle charge a 12V vehicle or deep cycle battery which can in turn power fans, lights, pumps, and other small appliances including televisions, VCRs and microwave ovens.
Please note, solar panels may take up to 5 days to ship. Solar equipment can not be shipped outside the US.
Returns on solar panels incur a 20% restocking fee.
|
