OPA541AM High Power Monolithic Op Amp

OPA541AM High Power Monolithic Op Amp

Manufacturer: Texas Instruments®
Part Number: OPA541AM

Price: $99.99
20 available for immediate delivery
Code: T410PD
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$36.95
$45.01
$90.00
$45.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information


High Power Monolithic Operational Amplifiers
New Old Stock - 1999 Date Code
(Due to age and handling leads may not be pristine.)

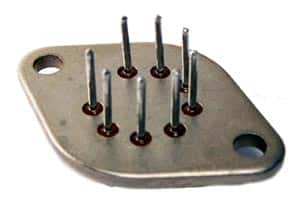

TO-3 Package

The OPA541 is a power operational amplifier able to operate from power supplies up to ±40V. It delivers output current up to 5A continuously. A single external resistor can be used to program internal current limit circuitry. This protects the amplifier and load from fault conditions. This op amp is created using a proprietary bipolar/FET process.

Maximum Ratings:
Supply Voltage, +VS to –VS: 80V
Power Dissipation, Internal: 125W
Input Voltage: Differential:±V(S) ; Common Mode: ±V(S)
Pin Solder Temperature: 300°C 10 sec.
Junction Temperature: 150°C
Storage Temperature: -65°C to 150°C
Case Operating Temperature: -55°C to 125°C

Features:
Power Supplies to ±40V
Output current to 10A peak
Programmable current limit
FET input

Applications:
Motor Driver
Servo Amplifier
Synchro Excitation
Audio Amplifier
Programmable Power Supply

Manufactured by: Burr-Brown
Part number: OPA541AM
