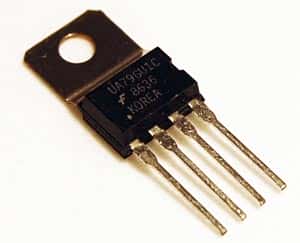

UA79GU1C Adjustable Voltage Regulator Fairchild

UA79GU1C Adjustable Voltage Regulator Fairchild

Manufacturer: Fairchild
Part Number: UA79GU1C
Package: TO-202
Number Leads/Terminals: 4

Price: $3.50
469 available for immediate delivery
Code: T486PE01
Volume Pricing
Quantity Price Each
1-9$3.50
10-99$3.35
100+$3.15
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


DESCRIPTION / ADDITIONAL INFORMATION

Adjustable Voltage Regulators

Features:
Output Current in Excess of 1A
Negative Output -30V to -2.2V
Internal Thermal Overload Protection
Internal Short Circuit Protection
Output Transistor Safe-Area Protection

Electrical Characteristics:
Input Voltage Range (TJ=25°C): -40V to -7.0V
Nominal Output Voltage Range (VI=VO-5.0V): -30 V to -2.23V
Line Regulation: 1.0% VO max.
- (TJ=25°C, V≥-10V (VO-20V)≤VI≤(VO-2.5V))
Load Regulation: 1.0% VO max.
- (TJ=25°C,VI=VO-5.0V / 250mA≤IO≤750mA)
Control Lead Current (TJ=25°C): 0.4uA typ.
Quiescent Current (TJ=25°C): 0.5mA typ.
Ripple Rejection: 60dB typ.
- (VO=-8.0V, VI=-13V, f=2400Hz, IC=350mA)
Peak Output Current (TJ=25°C): 2.1A typ.

Full Datasheet: UA79GU1C
