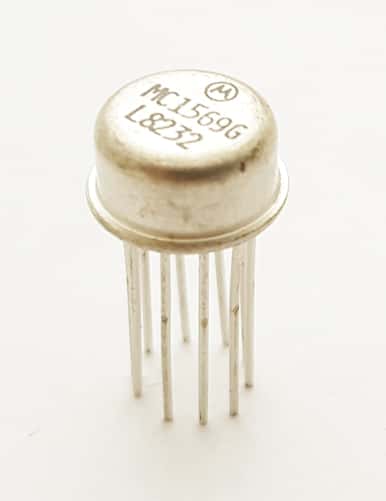

MC1569G 40V Positive Voltage Regulator Motorola

MC1569G 40V Positive Voltage Regulator Motorola

Manufacturer: Motorola
Part Number: MC1569G
Voltage: 40
Package: Metal Can 603-04
Number Leads/Terminals: 10

Price: $26.00
28 available for immediate delivery
Code: T540PE03
Volume Pricing
Quantity Price Each
1-9$26.00
10+$23.50
Quantity:
