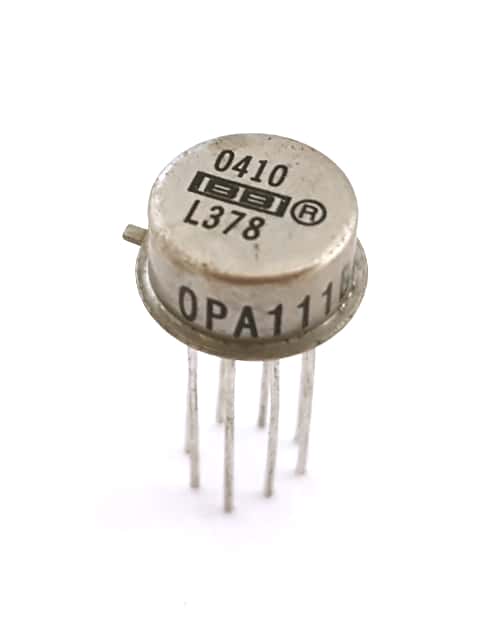

OPA111BM OPA111 BM Op Amp IC Burr Brown

OPA111BM OPA111 BM Op Amp IC Burr Brown

Manufacturer: Burr Brown®
Part Number: OPA111BM
Package: TO-99
Lead/Terminal Type: Straight
Number Leads/Terminals: 8
Color: Silver

Price: $49.55
1 available for immediate delivery
Code: T541PE04
Volume Pricing
Quantity Price Each
1-9$49.55
10-99$47.20
100+$44.00
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$36.95
$45.01
$90.00
$45.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

Description / Additional Information

Operational Amplifier
Precision Difet®

Features:
- Low Noise
- Low Bias Current
- Low Offset
- Low Drift
- High Open-Loop Gain
- High Common-Mode Rejection

Typical Electrical Specs(VCC=+/- 15V and TA=25°C unless otherwise noted):

Noise
- Voltage (fo=10Hz 100% Tested): 30nV/√Hz
- Current (fB=0.1Hz to 10Hz): 7.5fAp-p
Offset Voltage
- Input Offset Voltage (VCM = 0VDC): +/- 50.0uV
- Average Drift (TA = TMIN to TMAX): +/- 0.5uV/°C
- Supply Rejection (VCC = +/- 10V to +/- 18V): 110dB
Input Bias Current (VCM = 0VDC): +/- 0.5pA
Input Offset Current (VCM = 0VDC): +/- 0.25pA
Open Loop Voltage Gain (RL ≥ 2kΩ): 125dB
Voltage Output (RL = 2kΩ): +/- 12.0V
Current Output (VO = +/- 10VDC): +/- 10.0mA
Output Resistance (DC, Open Loop): 100Ω
Load Capacitance Stability (Gain=1): 1000pF
Rated Voltage: +/- 15V

Applications:
- Precision Instrumentation
- Data Communication
- Test Equipment
- Optoelectronics
- Medical Eqipment-CAT Scanner
- Radiation Hard Equipment

Manufactured by: Burr Brown®
Part Number: OPA111BM

Full Datasheet: OPA111BM
