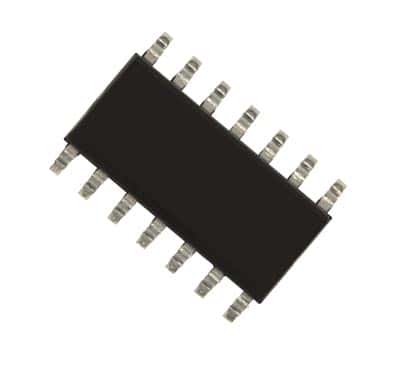

MC14066BDR2 Quad Bilateral Switch IC Motorola

MC14066BDR2 Quad Bilateral Switch IC Motorola

Manufacturer: Motorola
Part Number: MC14066BDR2
Package: SOIC
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 14

Price: $0.40
3163 available for immediate delivery
Code: G387APF04
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.40
10-99$0.35
100-999$0.30
1000+$0.25
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Quad Analog/Quad Multiplexer Switch ICs

Features:
- Triple Diode Protection on All Control Inputs
- Supply Voltage Range = 3.0 Vdc to 18 Vdc
- Linearized Transfer Characteristics
- Low Noise − 12 nV/√Cycle, f ≥ 1.0 kHz typical
- Pin−for−Pin Replacement for CD4016, CD4016, MC14016B

Typical Electrical Characteristics (VDD = 10V, 25°C unless otherwise noted):

SUPPLY REQUIREMENTS:
Power Supply voltage Range: 3.0V to 18.0V
Quiescent Current Per Package: 0.005uA

CONTROL INPUTS
Low-Level Input Voltage: 4.5V
High-Level Input Voltage: 5.5V
Input Leakage Current (VDD = 15): ±0.00001uA
Input Capacitance: 5.0pF

SWITCHES IN AND OUT:
Recommended Static or Dynamic Voltage Across the Switch (Channel On): 600mV max.
Output Offset Voltage: 10uV
ON Resistance: 120 ohm
Off-Channel Leakage Current (VDD = 15): ±0.05nA
Capacitance, Switch I/O (Switch Off): 10pF

Manufactured by: Motorola
Part Number: MC14066BDR2

Full Datasheet: MC14066BDR2 IC Motorola
