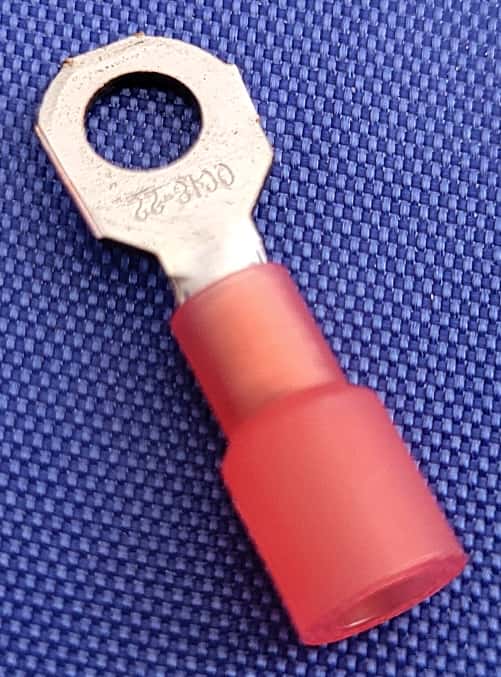

Solderless Crimp Terminals 0.3 Ring Red Stud 8 Connectors

Solderless Crimp Terminals 0.3 Ring Red Stud 8 Connectors

Manufacturer: Ark-les®
Part Number: 7503488
Lead/Terminal Type: Double Crimp
Color: Red
Temperature: 105°C

Price: $0.10
3400 available for immediate delivery
Code: LG127
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Nylon Insulated Solderless Crimp Terminals
Solderless terminals are most often used to complete the connection for electronic and electrical projects. They come in many different styles and sizes for your various installations. Nylon insulated terminals are referred to as double-crimp terminals because they are crimped once on the bare wire and again on the insulation of the wire. For this reason alone, they are a better grade of terminal connector since the double crimp makes the connection more secure. You can generally tell a nylon insulation crimp terminal by the more translucent appearance on the insulation sleeve.

Suggested applications include:
-general use
-high vibration installations
-heavy industrial installations

Type: ring lug
Wire size: 22 - 18
Stud size: 8
Type of insulation: partial
Insulation color: red
Applicator type: 70801
Crimp tool kit: 70101
Max voltage rating: 600V (1000V max for signs and lighting fixtures / luminaires)
Max temp rating: 105°C
Rated: UL (Listed 221B) SA
Recommended wire strip length: 9/32" +/- 1/32"
Rated for stranded copper wire only

Manufactured by: Ark-les®
Part Number: 7503488
