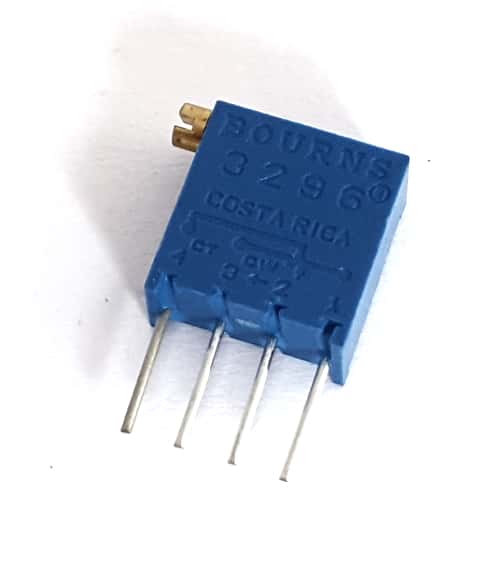

10K Ohm .5W Trimmer Potentiometer Voltage Center Tap 4 Pin 3296X-OT1-103LF Bourns®

10K Ohm .5W Trimmer Potentiometer Voltage Center Tap 4 Pin 3296X-OT1-103LF Bourns®

Manufacturer: Bourns®
Part Number: 3296-OT1-103LF
Watts: .5 (1/2)
Ohms: 10,000
Tolerance (%): 20
Mounting: Vertical / Through Hole
Lead/Terminal Type: PC Pin / Inline
Number Leads/Terminals: 4
Color: Blue
Temperature: -55 to 125°C
RoHS Compliant: Yes
Obsolete: Yes
Pitch (mm): 2.54
Termination Method: Solder
Size (mm): 9.63 x 4.83 x 10.03

Price: $1.50
245 available for immediate delivery
Code: P340APU11
Weight: 0.03oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Trimpot™ with Voltage Center Tap
4 Pins
OBSOLETE

Features:
- Multiturn (25 turns)
- Side Adjust
- Sealed
- Cermet
- PCB Mount (THM)

Resistance: 10 kOhms
Power Rating: 0.50W (½W)
Tolerance: 20%
Dielectric Strength
- Sea Level: 900Vac
- 70,000 Feet: 350Vac
Operating Temperature: -55 to 125°C

Center Tap Specs
- Resistance: 2.0 Ohms max.
- Electrical Center: ±5 %
- Dead Band: 0.5 turn

Dimensions:
Length: 9.63mm (0.379")
Width: 4.83mm (0.19")
Height: 10.03mm (0.394")

Manufactured by: Bourns®
Part Number: 3296X-OT1-103LF

Full Datasheet: Bourns® 3296 Series Variable Resistor 10KΩ 500mW

RoHS Compliant
