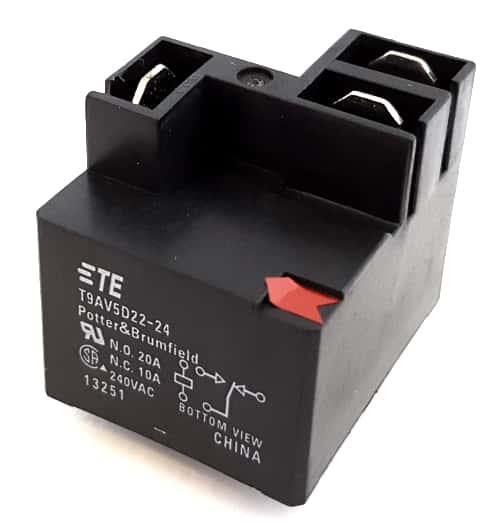

20A 24V PCB Mount Power Relay SPDT Potter Brumfield® T9AV5D22-24

20A 24V PCB Mount Power Relay SPDT Potter Brumfield® T9AV5D22-24

Manufacturer: Potter & Brumfield®
Part Number: T9AV5D22-24
Amps: 20
Voltage: 24
Watts: 1
Ohms: 576
Mounting: Through Hole
Lead/Terminal Type: PC Pin
Number Leads/Terminals: 5
Color: Black
Temperature: -55 to 85°C
RoHS Compliant: Yes
Obsolete: Yes
Termination Method: Solder

Price: $5.00
14 available for immediate delivery
Code: REL081BPT06
Weight: 1.10oz ONZ
