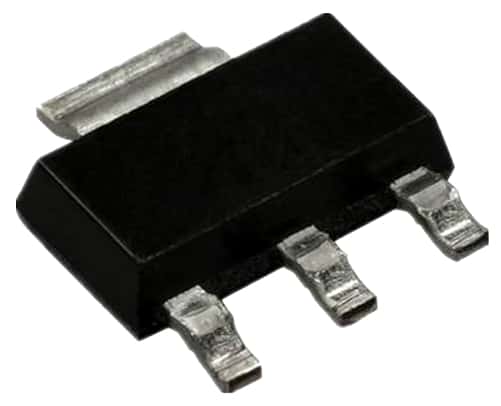

BSP20 100mA 300V Surface Mount NPN High Voltage Transistor Philips

BSP20 100mA 300V Surface Mount NPN High Voltage Transistor Philips

Manufacturer: Philips
Part Number: BSP20
Amps: .1
Voltage: 300
Watts: 1.2
Package: SOT-223
Mounting: Surface Mount
Number Leads/Terminals: 3
Material: Plastic
Color: Black
Temperature: 150
Shape: Rectangle
Termination Method: Solder

Price: $0.25
800 available for immediate delivery
Code: T783APQ10
Weight: 0.01oz ONZ
