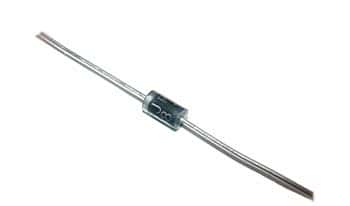

RGP15J 1.5A 1.5 Amp 600V Fast Switching Diode

RGP15J 1.5A 1.5 Amp 600V Fast Switching Diode

Manufacturer: General Semiconductor
Part Number: RGP15J
Amps: 1.5
Voltage: 600
Lead/Terminal Type: Axial

Price: $0.40
3045 available for immediate delivery
Code: DI071
Volume Pricing
Quantity Price Each
1-99$0.40
100+$0.35

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Glass Passivated Junction
Fast Switching Rectifier Diode

Plastic package has Underwriters Laboratories Flammability Classification 94V-0
High temperature metallurgically bonded construction
Cavity-free glass passivated junction
Capable of meeting environmental standards of MIL-S-19500
1.5 Ampere operation at TA=55°C with no thermal runaway
Typical IR less than 0.1μA
High temperature soldering guaranteed:
350°C/10 seconds, 0.375" (9.5mm) lead length,
5 lbs. (2.3kg) tension


Maximum repetitive peak reverse voltage: 600V RRM
Maximum RMS voltage: 420V RMS
Maximum DC blocking voltage: 600V DC
Peak forward surge current
8.3ms single half sine-wave superimposed
on rated load (JEDEC Method): 50A

Manufactured by: General Semiconductor
Part Number: RGP15J

Full Datasheet RGP15J
