1N5275B 500mW 140V Voltage Regulator Zener Diode

1N5275B 500mW 140V Voltage Regulator Zener Diode

Manufacturer: Motorola
Part Number: 1N5275B
Voltage: 140
Package: DO-204AH
Lead/Terminal Type: Axial
Number Leads/Terminals: 2

Price: $0.10
3 available for immediate delivery
Code: DI325PD
Volume Pricing
Quantity Price Each
1-9$0.10
10-99$0.07
100+$0.04

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Voltage Regulator Zener Diodes

DO-204AH Package
Metallurgical Bonded Construction

Case: Double Slug Type, Hermetically Sealed Glass
Leads:
-Axial
-Readily Solderable
-Max. Temp. for Soldering 230°C,1/16" from Case, 10 sec.
Finish: External Surfaces Corrosion Resistant
Polarity: Cathode Indicated by Band

Max. Ratings:
DC Power Dissipation(@TL≤75°C, Lead Length=3/8"): 500mW
Derated above 75°C: 4mW/°C
Operating & Storage Temperature: -65°C to 200°C

Electrical Characteristics
(TA=25°C unless otherwise noted,Lead Length 3/8", Thermal Resistance of Heatsink=30°C/W, VF=1.1V max., IF=200mA)
Zener Voltage Tolerance: 5%
Nominal Zener Voltage: 140V @ 0.9mA
Max. Zener Impedance: 1300 ohms @ 0.9mA
Max. Zener Knee Impedance: 4500 ohms @ 0.25mA
Max. Reverse Leakage Current: 1µA, 106V

Manufactured by: Motorola®
Part number: 1N5275B

Full Datasheet: 1N5275B

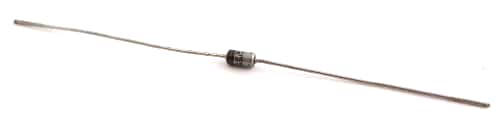

Stock photo is for reference only and may not be the exact part number described
