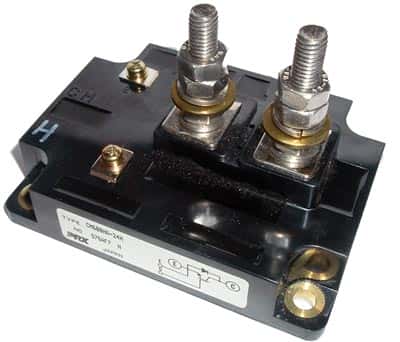

CM600HA-24H 600A 1200V H-Series IGBT Module Powerex

CM600HA-24H 600A 1200V H-Series IGBT Module Powerex

Manufacturer: Powerex
Part Number: CM600HA-24H
Amps: 600
Voltage: 1200

Price: $535.00
1 available for immediate delivery
Code: DI995PE04
Weight: 19.40oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$29.95
$45.01
$90.00
$39.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

IGBT Module
H-Series

Features:
- Low Drive Power
- Low VCE(sat)
- Discrete Super-Fast Recovery (135ns) Free-Wheel Diode
- High Frequency Operation (20-25kHz)
- Isolated Baseplate for Easy Heat Sinking

Description / Additional Information

The Powerex IGBTMOD™ Module is designed with one IGBT transistor combined in a single configuration with a reverse connected super-fast recovery free-wheel diode. Easy system assembly and thermal management are achieved by separating all components and interconnects from the heat sinking baseplate.

MAXIMUM Ratings
Junction Temperature: -40°C to 150°C
Storage Temperature: -40°C to 125°C
Collector-Emitter Voltage (G-E SHORT): 1200V
Gate-Emitter Voltage: ±20V
Collector Current: 600A
Peak Collector Current: 1200A
Diode Forward Current: 600A
Diode Forward Surge Current: 1200A
Power Dissipation: 4100W

STATIC Electrical Characteristics (TJ=25°C unless otherwise noted):
Collector-Cutoff Current (VCE = VCES, VGE = 0V): 2.0mA max.
Gate Leakage Current (VGE = VGES, VCE = 0V): 0.5uA max.
Gate-Emitter Threshold Voltage (IC = 60mA, VCE = 10V): 6.0V typ.
Collector-Emitter Saturation Voltage (IC = 600A, VGE = 15V): 2.5V typ.
Total Gate Charge (VCC = 600V, IC = 600A, VGS = 15V): 3000nC typ.
Diode Forward Voltage (IE = 600A, VGS = 0V): 3.5V max.

DYNAMIC Electrical Characteristics (TJ=25°C unless otherwise noted):
Input Capacitance (VGE = 0V, VCE = 10V, f = 1MHz): 120nF max.
Output Capacitance (VGE = 0V, VCE = 10V, f = 1MHz): 42nF max.
Reverse Transfer Capacitance (VGE = 0V, VCE = 10V, f = 1MHz): 24nF max.
Resistive Load Switching Times (VCC = 600V, IC = 600A, VGE1 = VGE2 = 15V, RG = 2.1W)
- Turn-on Delay Time: 300ns max.
- Rise Time: 700ns max.
- Turn-off Delay Time: 450ns max.
- Fall Time: 350ns max.
Diode Reverse Recovery Time (IE = 600A, diE/dt = –1200A/us): 250ns max.
Diode Reverse Recovery Charge (IE = 600A, diE/dt = –1200A/us): 4.46uC typ.

THERMAL & MECHANICAL Characteristics (TJ = 25°C unless otherwise specified)
Thermal Resistance, Junction to Case (Per IGBT): 0.035°C/W
Thermal Resistance, Junction to Case (Per FWDi): 0.06°C/W
Contact Thermal Resistance (Per Module, Thermal Grease Applied): 0.035°/W

Applications:
- AC Motor Control
- Motion/Servo Control
- UPS
- Welding Power Supplies
- Laser Power Supplies

Manufactured by: Powerex
Part Number: CM600HA-24H

Full Datasheet: CM600HA-24H
