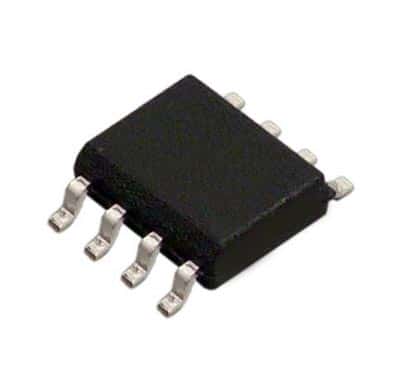

SA602AD Double Balanced Mixer and Oscillator

SA602AD Double Balanced Mixer and Oscillator

Manufacturer: Philips
Part Number: SA602AD
Package: SOIC
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 8

Price: $2.75
1429 available for immediate delivery
Code: G457APF05
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$2.75
10-99$2.50
100-499$2.25
500+$2.00
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Double Balanced Mixer and Oscillator

Features:
- Low current consumption: 2.4mA typical
- Excellent noise figure: <4.7dB typical at 45MHz
- High operating frequency
- Excellent gain, intercept and sensitivity
- Low external parts count; suitable for crystal/ceramic filters
- SA602A meets cellular radio specifications

Typical AC/DC Electrical Characteristics (VCC = +6V, TA = 25°C; unless otherwise noted):
Power supply voltage range: 4.5V to 8.0V
DC current drain: 2.4mA
Input signal frequency: 500MHz
Oscillator frequency: 200MHz
Noise figure at 45MHz: 5.0dB
Third-order intercept point (RFIN = -45dBm: f1 = 45.0MHz ; f2 = 45.06MHz): -13dBm
Conversion gain at 45MHz: 17dB
RF input resistance: 1.5kΩ min.
RF input capacitance: 3pF
Mixer output resistance (Pin 4 or 5): 1.5kΩ

Applications:
- Cellular radio mixer/oscillator
- Portable radio
- VHF transceivers
- RF data links
- HF/VHF frequency conversion
- Instrumentation frequency conversion
- Broadband LANs

Manufactured by: Philips
Part Number: SA602AD

Full Datasheet: Philips Oscillator SA602AD
