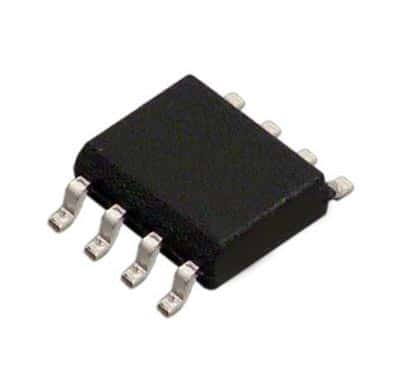

LM311M 8 Pin Comparator SMT IC

LM311M 8 Pin Comparator SMT IC

Manufacturer: National Semiconductor
Part Number: LM311M

Price: $0.35
2693 available for immediate delivery
Code: IC384PD
Weight: 0.02oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.35
10-99$0.33
100+$0.31

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


Surface Mount Voltage Comparator
8 Pin

Maximum Ratings:
Total Supply Voltage(V84): 36V
Output to Negative Supply Voltage(V74): 40V
Ground to Negative Supply Voltage(V14): 30V
Differential Input Voltage: ±30V
Input Voltage: ±15V
Power Dissipation: 500 mW
ESD Rating: 300V
Output Short Circuit Duration 10 sec
Operating Temperature: 0° to 70°C
Storage Temperature: −65°C to 150°C
Lead Temperature(soldering, 10 sec): 260°C
Voltage at Strobe Pin: V+−5V

Electrical Characteristics(Typical) (TA=25°C unless otherwise noted):
Input Offset Voltage(R(S)≤50k): 2mV
Input Offset Current: 6nA
Input Bias Current: 100nA
Voltage Gain: 200V/mV
Response Time: 200ns
Saturation Voltage: .75V
(VIN≤−10 mV, IOUT=50 mA)

Manufactured by: National Semiconductor
Part number: LM311M

Full datasheet: LM311M
