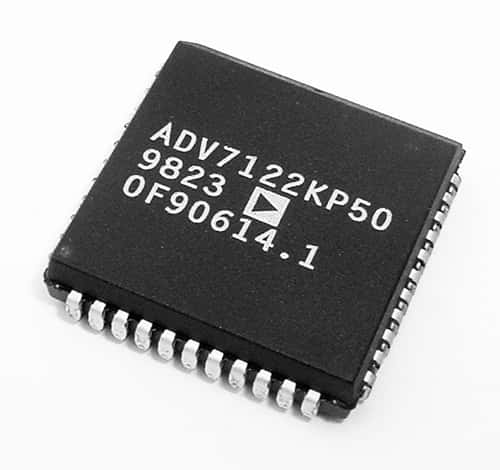

ADV7122KP50 CMOS 80MHz Triple 10-Bit Video DACS Analog Devices

ADV7122KP50 CMOS 80MHz Triple 10-Bit Video DACS Analog Devices

Manufacturer: Analog Devices
Part Number: ADV7122KP50

Price: $60.41
54 available for immediate delivery
Code: IC447PE01
Volume Pricing
Quantity Price Each
1-9$60.41
10+$57.50
