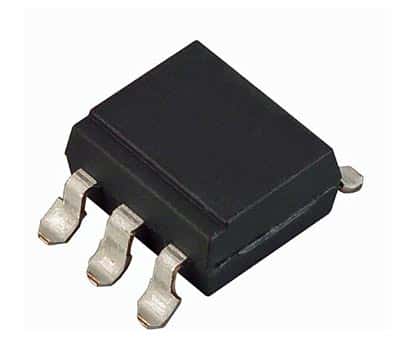

LTV702VA LTV702VSA Optocoupler IC Lite-On

LTV702VA LTV702VSA Optocoupler IC Lite-On

Manufacturer: Lite-On
Part Number: LTV702VA
Mounting: Surface Mount
Number Leads/Terminals: 6
Termination Method: Solder

Price: $2.00
394 available for immediate delivery
Code: IC699APH06
Weight: 0.02oz ONZ
Volume Pricing
Quantity Price Each
1-9$2.00
10-99$1.90
100+$1.75
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Optocoupler ICs

Features:
- High collector-emitter voltage(VCEO=70V)
- High input-output isolation voltage: (VISO : 5,000Vrms)
- Directly connectable to TTL

INPUT Maximum Ratings
Forward Current: 60mA
Reverse Voltage: 6.0V
Power Dissipation: 105mW
OUTPUT Maximum Ratings
Collector-Emitter Voltage: 70V
Emitter-Collector Voltage: 6.0v
Collector Current: 50mA
Collector Power Dissipation: 160mW
Collector-Base Voltage: 70v
Emitter-Base Voltage: 6.0V
OTHER Maximum Ratings
Total Power Dissipation: 200mw
Isolation Voltage: 5KVrms
Soldering Temperature: 260°C for 10 seconds

Electrical/Optical Characteristics (TA=25°C unless otherwise noted):

INPUT
Forward Voltage (IF=60mA): 1.4V typ.
Reverse Current (VR=6V): 10uA max.
Terminal Capacitance (V=0, f=1KHz): 30pF typ.

OUTPUT
Collector-Emitter Breakdown Voltage (IC=0.1mA): 70.0V min.
Emitter-Collector Breakdown Voltage (IE = 10uA): 6.0V min.
Collector-Base Breakdown Voltage (IC=0.1mA): 70V min.

TRANSFER
Collector Current (IF=10mA VCE=5V): 4 to 32mA
Current Transfer Ratio (IF=10mA VCE=5V): 40 to 320%
Collector-emitter Saturation Voltage (IF=10mA, IC=2.5mA): 0.25V typ.
Isolation Resistance (DC500V, 40~60% R.H.): 10^11 ohm typ.
Floating Capacitance (V=0, f=1MHz): 0.6pF typ.
Cut-off Frequency (VCC=5V, IF=10mA RL = 75 ohm, -3dB): 150kHz
Response Time-Rise and Fall (VCC=5V, IF=10mA RL = 75 ohm): 2.0us typ.

Applications:
- Telephone sets, telephone exchangers.
- System appliances, measuring instruments.
- Signal transmission between circuits of different potentials and impedances.

Manufactured by: Lite-On
Part Number: LTV702VA

Full Datasheet: Lite-On Photocoupler IC LTV702VSA
