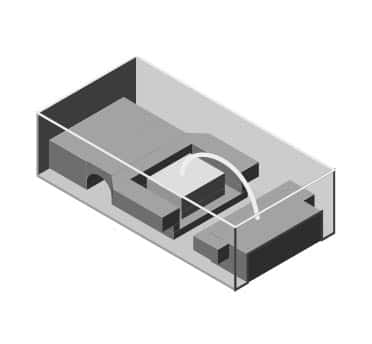

Green Surface Mount LED 0603 Vishay TLMG1100-GS08

Green Surface Mount LED 0603 Vishay TLMG1100-GS08

Manufacturer: Vishay
Part Number: TLMG1100-GS08
Capacitance (uF): .000015
Voltage: 2.1
Package: 0603
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 2
Color: Green
Shape: Rectangle
Termination Method: Solder
Luminous Intensity (mcd): 35

Price: $0.20
2975 available for immediate delivery
Code: LED204APH03
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.20
10-99$0.18
100+$0.15

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

SMT LED Lamps
Size: 0603
Color: Green

Features:
- Viewing Angle: 160°
- Small Footprint
- High Reliability
- Compatible to IR reflow soldering

Maximum Ratings:
Reverse voltage: 12V
DC Forward current: 30mA
Surge forward current: 0.5A
Power dissipation: 90mW
Junction temperature: 120°C
Operating and storage temperature range: -40°C to 100°C

Typical Optical and Electrical Characteristics
Luminous intensity: 35 mcd
Dominant wavelength: 570nm
Peak wavelength: 572nm
Angle of half intensity: ±80°
Forward voltage: 2.1V
Reverse voltage: 6.0V min.
Junction capacitance: 15pF

Dimensions
Length: 1.6mm (0.06")
Width: 0.8mm (0.03")
Height: 0.6mm (0.02")

Applications:
- Backlight keypads
- Navigation systems
- Cellular phone displays
- Displays for industrial control systems
- Automotive features
- Miniaturized color effects
- Traffic displays

Manufactured by: Vishay
Part Number: TLMG1100-GS08

Full Datasheet: Vishay TLMG1100-GS08 Green SMD 0603 LED
