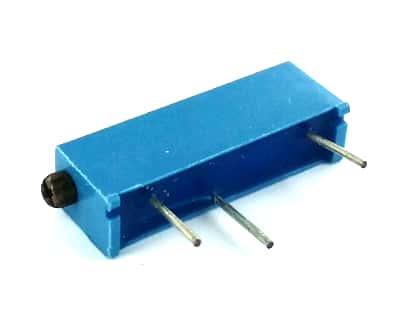

10 ohm .75W Adjustable Trimpot Variable Resistor Murata® POT2103P-1-100

10 ohm .75W Adjustable Trimpot Variable Resistor Murata® POT2103P-1-100

Manufacturer: Murata®
Part Number: POT2103P-1-100
Amps: .1
Voltage: 300
Watts: .75
Ohms: 10
Tolerance (%): 10
Mounting: PCB
Lead/Terminal Type: Staggered
Number Leads/Terminals: 3
Color: Blue
Temperature: 125°C
Shape: Rectangle
Termination Method: Solder
Size (mm): 19 x 4.6 x 6.4

Price: $0.65
337 available for immediate delivery
Code: P154PD
Weight: 0.02oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.65
10-99$0.63
100+$0.60
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$29.95
$45.01
$90.00
$39.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

PCB Trimmer Potentiometers

The clutch mechanism in these variable resistors prevents excessive wiper rotation. They are recommended for applications that require side adjustment and are compatible with ultrasonic cleaning.

Features:
- Side Adjust
- 15 turns +/- 3
- Sealed Cermet
- Staggered Leads

Resistance: 10.0 ohm
Power Rating: 0.75W
Tolerance: 10%
Max Working Voltage: 300V
Max Wiper Current: 100mA max.
Residual Resistance: 2 ohm max
Contact Resistance Variation: 3% or 3 ohm max (whichever is greater)
Dielectric Strength: 1000Vac
Insulation Resistance: 1000M ohm min (500Vdc)
Torque: 14.7mNm (150gh-cm) max
Temperature: -55 to 125°C

Dimensions:
Length: 19.0mm (0.75")
Width: 4.6mm (0.18")
Height (above board): 6.4mm (0.25")

Manufactured by: Murata®
Part number:POT 2103P-1-100

Full Datasheet: Murata® POT2103 Series 10 Ohms 3/4W Trimming Potentiometer
