26 AWG Stranded Hook Up Wire Alpha 7053 Green

26 AWG Stranded Hook Up Wire Alpha 7053 Green

Manufacturer: Alpha
Part Number: 7053
Voltage: 150
Color: Green
Temperature: 80
Size (mm): .99

Price: $0.25
1728 available for immediate delivery
Code: W003APL10
Weight: 0.10oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

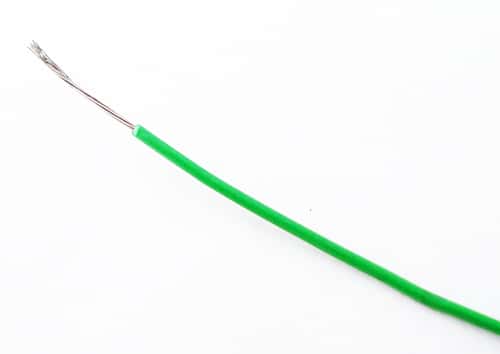

Green Tinned Copper Stranded Wire
26 Gauge (7/34)
Made in USA

Military Spec: MIL-W-16878E Type B
105 deg. C / 600Vrms

UL Spec: AWM/Style 1429
80 deg. C / 150Vrms

CSA Intl: AWM I A/B
80 deg. C / 150Vrms

Physical Specs
Temperature Range: -55 to 105 deg. C
Pull Tension: 2.18 lb Max.
Conductor Diameter: 0.48mm (0.019")
Overall O.D.: 0.99mm (0.039")
Wall Thickness 0.254mm (0.010")

Electrical Specs
Voltage Rating: 150V
Inductance: 0.06 uH/ft. nom.
Conductor DCR: 41 ohm/1000ft @ 20 deg. C nom.

Manufactured by: Alpha
Part Number: 7053

Full Datasheet: 150V(UL/CSA) 600V (MIL) Green 26 Gauge Tinned Copper Wire

Price is for 1 foot of wire
