25W 50 ohm Power Wirewound Resistor Adjustable 0366

25W 50 ohm Power Wirewound Resistor Adjustable 0366

Manufacturer: Ohmite
Part Number: 366
Watts: 25
Ohms: 50

Price: $9.75
2 available for immediate delivery
Code: WW540PD
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$29.95
$45.01
$90.00
$39.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

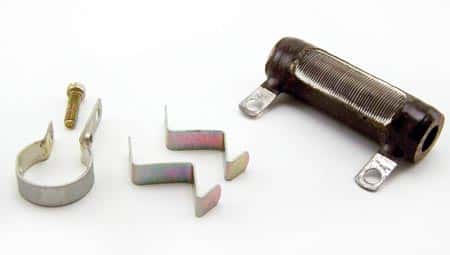

Dividohm� Adjustable Wire Wound Resistors
Includes Mounting Hardware

These wirewound resistors are equipped with an adjustable lug, making them ideal for adjusting circuits, obtaining odd resistance values and setting equipment to meet various line voltages. The resistors feature a hollow core to permit secure fastening with spring-type clips or thru bolts with washers.

Coating: Lead free Vitreous Enamel
Core: Ceramic
Adjustable Terminal: Nickel Plated Steel

Specs:
Power Rating: 25W
Resistance: 50 ohm
Tolerance: 10%
Voltage: 625V
Overload: 10X Rated wattage for 5 Sec.
Temperature Coefficient: 260ppm/�C
Dielectric Withstanding Voltage: 1000Vac

Dimensions:
- Length: 2.0" (50.8mm)
- Diameter: .562" (14.3mm)
- Core: 0.313" (7.94mm)

Features:
Terminals suitable for soldering or bolt connection.
Adjustable lug supplied.
High wattage applications
All Welded Construction

Manufactured by: Ohmite
Part Number: NO.0366
