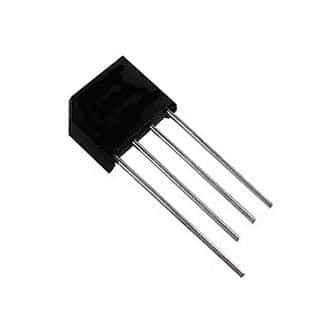

4A 1000V Bridge Rectifier TL410 Cross KBL10

Manufacturer: TCI
Part Number: TL410
Amps: 4
Voltage: 1000

Price: $0.42
338 available for immediate delivery
Code: DI100PD
Volume Pricing
Quantity Price Each
1-9$0.42
10-99$0.40
100+$0.37
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$15.00
$3.85
$15.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$15.00
$8.50
$15.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$14.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$19.95
$45.01
$90.00
$39.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$00.01
$45.00
$29.95
$45.01
$90.00
$45.95
$90.01
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information


Bridge Rectifiers
Crosses to Fairchild KBKL10

Case:TL, Molded Plastic
Epoxy: Plastic package has UL flammability 94V-0
Terminals: Plated leads solderable per MIL-STD-202, Method 208

Electrical Characteristics
Max. Repetitive Peak Reverse Voltage: 1000V
Max. RMS Voltage: 700V
Max. DC Blocking Voltage: 1000V
Max. Average Forward Current: 4.0A
Peak Forward Surge Current: 200A
- (8.3ms single half sine-wave superimposed on rated load)
Max. Instantaneous Forward Voltage Drop per leg: 1.1V
Maximum DC Reverse Current:
(at Rated DC Blocking Voltage per leg)
- TA=25C: 5.0A
- TA=125C: 1.0mA

Features
Ideal for printed circuit boards
Low forward voltage drop
High current capability
High reliability
High surge current capability
High temperature soldering
This series is UL recognized under component index, File number E194718

Manufactured by: TCI
Part Number: TL410

Full Datasheet: TL410
