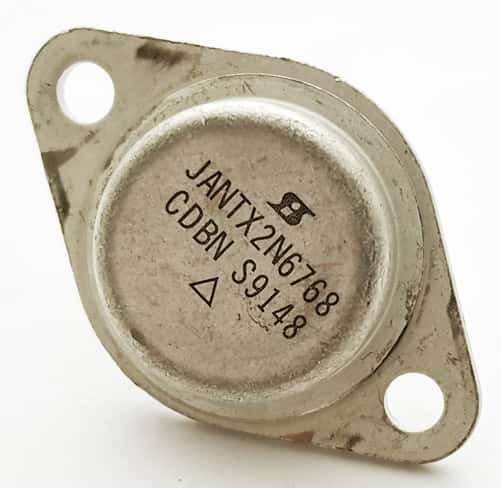

2N6768 JANTX2N6768CDBN MosFET Transistor Military Siliconix

2N6768 JANTX2N6768CDBN MosFET Transistor Military Siliconix

Manufacturer: Silconix
Part Number: JANTX2N6768CDBN
Amps: 14
Voltage: 400
Ohms: .3
Package: TO-204AA
Lead/Terminal Type: Through Hole
Number Leads/Terminals: 2
Military Spec: Yes

Price: $45.00
7 available for immediate delivery
Code: IC646APH03
Weight: 0.42oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Military Power MosFET Transistors

Features:
- Repetitive Avalanche Ratings
- Dynamic dv/dt Rating
- Hermetically Sealed
- Simple Drive Requirements
- Ease of Paralleling

Maximum Ratings
Continuous Drain Current (ID @ VGS = 10V, TC = 25�C): 14A
Pulsed Drain Current: 56A
Max. Power Dissipation: 150w
Gate-to-Source Voltage: �20V
Single Pulse Avalanche Energy: 11.3mJ
Avalanche Current: 14qa
Repetitive Avalanche Energy: 15mJ
Peak Diode Recovery dv/dt: 4.0V/ns

Electrical Characteristics @ Tj = 25�C (Unless Otherwise Specified)
(See Datasheet for Test Conditions)
Drain-to-Source Breakdown Voltage: 400V min.
Static Drain-to-Source On-State Resistance: 0.300 ohms max.
Zero Gate Voltage Drain Current: 25uA max.
Total Gate Charge: 52nC to 110nC
Gate-to-Drain (�Miller�) Charge: 25nC to 65nC
Rise Time: 190ns max.
Fall Time: 130ns max.
Total Inductance: 6.1nH typ.
Input Capacitance: 2600pF typ.
Output Capacitance: 680pF typ.

Source-Drain Diode Ratings and Characteristics
Continuous Source Current (Body Diode): 14A max.
Diode Forward Voltage: 1.7V max.
Reverse Recovery Time: 1200nS max.
Reverse Recovery Charge: 250nC max.

Applications:
- Switching Power Supplies
- Motor Controls
- Inverters
- Choppers
- Audio Amplifiers
- High Energy Pulse Circuits

Manufactured by: Siliconix
Part Number: JANTX2N6768CDBN

For reference only, we are providing a datasheet for this part number, please note it is from a different manufacturer. West Florida Components assumes no liability for this information.

Full Datasheet: Siliconix MosFET Transistor JANTX2N6768CDBN
