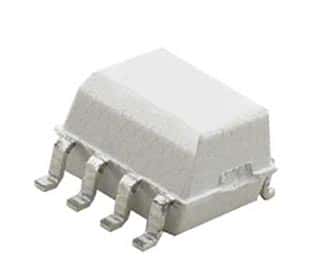

MOCD207R2M Dual Channel Phototransistor Optocoupler Fairchild

MOCD207R2M Dual Channel Phototransistor Optocoupler Fairchild

Manufacturer: Fairchild
Part Number: MOCD207R2M
Package: SOIC
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 8
Color: White

Price: $1.15
458 available for immediate delivery
Code: IC686APH02
Weight: 0.01oz ONZ
