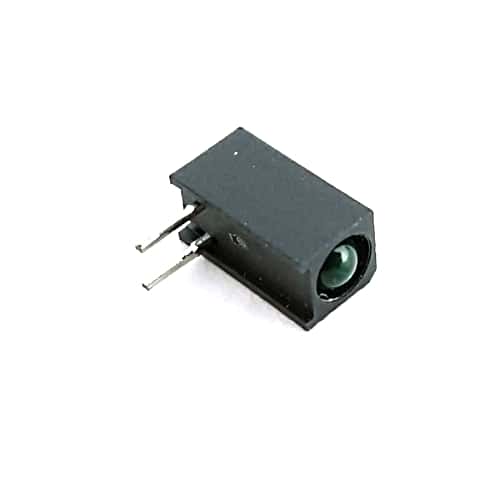

Green 3mm LED Single Circuit Board Indicator Light Dialight 551-1502

Green 3mm LED Single Circuit Board Indicator Light Dialight 551-1502

Manufacturer: Dialight
Part Number: 551-1502
Amps: .03
Voltage: 2.1
Watts: .1
Mounting: Right Angle
Lead/Terminal Type: PCB Pin
Number Leads/Terminals: 2
Color: Green
Temperature: 100
Shape: Rectangle
Termination Method: Solder
Size (mm): 3
Luminous Intensity (mcd): 50

Price: $0.50
690 available for immediate delivery
Code: LED263APQ08
Weight: 0.02oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

High Efficiency LED CBI Lamp
For Backlighting

LED Size: 3mm (T-1)
LED Shape: Round Domed Top
Lens Color: Green
Lens Transparency: Non-Diffused
Mounting: Right Angle

Peak Wavelength: 565nm
Millicandela Rating: 50mcd
Forward Voltage: 2.1V
Test Current: 10mA
Viewing Angle: 45 Degrees

Maximum Ratings
Power Dissipation: 100mW
Forward Current: 30mA
Peak Current: 120mA
Operating Temperature: -55 to 100 Degrees C

Holder Dimensions:
Length: 4.45mm (0.175")
Height: 5.08mm (0.20")
Depth: 8.71mm (0.345")
Centerline Height: 2.54mm (0.10")

Manufactured by: Dialight
Part Number: 551-1502

Full Datasheet: Dialight Green 3mm Right Angle T1 LED in Holder
