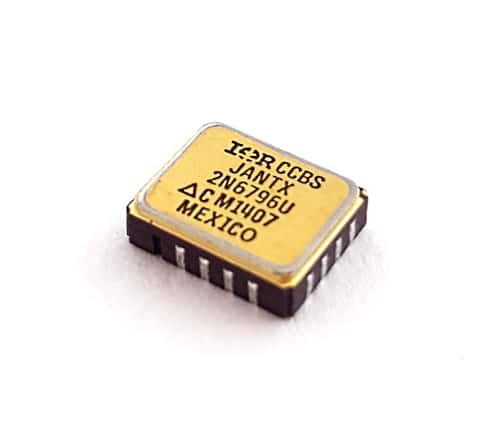

JANTX2N6796U 8A 100V SMT N-Channel Hexfet® Transistor MIL International Rectifier®

JANTX2N6796U 8A 100V SMT N-Channel Hexfet® Transistor MIL International Rectifier®

Manufacturer: International Rectifier®
Part Number: JANTX2N6796U
Amps: 8
Voltage: 100
Watts: .8
Ohms: .18
Package: LCC-18
Mounting: Surface Mount
Color: Black/Gold
Temperature: -55 to 150°C
RoHS Compliant: Yes
Obsolete: Yes
Shape: Rectangle
Termination Method: Solder
Size (mm): 9.14 x 7.49 x 2.92

Price: $55.00
20 available for immediate delivery
Code: C156APU03
Weight: 0.03oz ONZ
