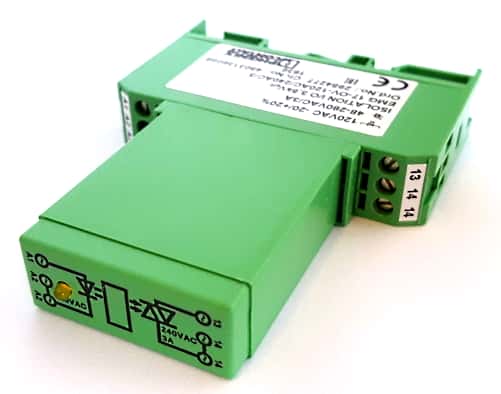

3A 120VAC 48-280VAC Solid-State Power Relay Module Phoenix® EMG17-OV-120AC/240AC/3

3A 120VAC 48-280VAC Solid-State Power Relay Module Phoenix® EMG17-OV-120AC/240AC/3

Manufacturer: Phoenix Contact®
Part Number: EMG17-OV-120AC/240AC/3-2954277
Amps: 3
Voltage (Vac): 120 (In) / 240 (Out)
Mounting: Horizontal
Number Leads/Terminals: 6
Color: Green
Temperature: -20 to 60°C
RoHS Compliant: Yes
Obsolete: Yes
Termination Method: Screw
Size (mm): 17.5 x 75 x 102

Price: $150.00
12 available for immediate delivery
Code: C167APU03
Weight: 2.65oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Power Solid-State Relay Modules with LED

OBSOLETE

Features:
- Power Optocoupler
- Yellow LED Light Indicator
- Protection Circuits in the Input and Output Circuits

Test Voltage: 3.5kV
Operating Temperature: -20 to 60°C

INPUT
Voltage: 120V AC
Current: 3.2mA
Transmission Frequency: 10Hz
Response Time: 10.0ms
Release Time: 10.0ms

OUTPUT
Nominal Voltage: 240VAC
Voltage Range: 48-280VAC
Frequency: 50-60Hz
Continuous Current: 3.0A

Dimensions:
Width: 17.5mm (0.69")
Height: 75.0mm (2.95")
Depth: 102mm (4.02")

Manufactured by: Phoenix Contact®
Part Number: EMG17-OV-120AC/240AC/3-2954277

Full Datasheet: Phoenix Contact® Relay w/LED 3A 120AC In/48-280AC Out

RoHS Compliant
