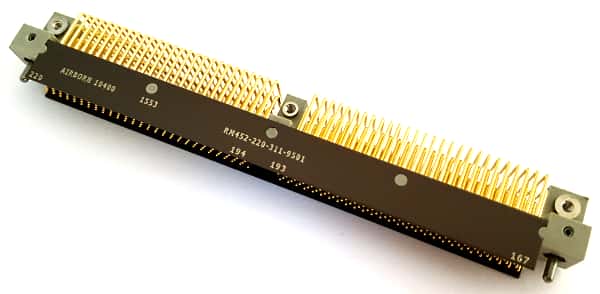

RM452-220-311-9501 Right Angle 220 Pin Connector Plug MIL Airborn®

RM452-220-311-9501 Right Angle 220 Pin Connector Plug MIL Airborn®

Manufacturer: Airborn®
Part Number: RM452-220-311-9501
Amps: 3
Ohms: .015
Mounting: Right Angle
Lead/Terminal Type: PC Pin
Number Leads/Terminals: 220
Material: Polyphenylene Sulfide (PPS)
Color: Gray / Black / Gold
Temperature: -65 to 125°C
Military Spec: Yes
Shape: Rectangular
Pitch (mm): 1.9
Size (mm): 128.78 x 20.32 x 10.16

Price: $500.00
16 available for immediate delivery
Code: C177APU04
Weight: 1.52oz ONZ
