Screw-On Rubber Recessed Bumpers Cabinet Feet .344 x .890 in.

Screw-On Rubber Recessed Bumpers Cabinet Feet .344 x .890 in.

Manufacturer: Budwig
Part Number: SQF6T
Material: Thermoplastic rubber
Color: Black
Adhesion Type: Screw on
RoHS Compliant: Yes
Shape: Square

Price: $0.80
2093 available for immediate delivery
Code: CFT110PE03
Volume Pricing
Quantity Price Each
1-9$0.80
10-99$0.76
100+$0.72

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Price stated is for ONE rubber foot.

Screw-On Rubber Recessed Bumper Cabinet Feet Square

These rubber feet are constructed of thermoplastic rubber which provides excellent shock absorbing qualities and traction. Another benefit to the thermoplastic material is that the recessed bumpers resist stress cracks and have good non-marking qualities.

Each screw-on rubber foot has a plated steel support bushing. The bushing absorbs the fastener load so that the foot is able to be mounted using a range of screws and rivets without distortion to the foot. The thermoplastic composition of the recessed foot is resistant to most chemicals, ozone and aging. These bumpers are excellent for preventing slippage, limiting floor scratching and softening sound.

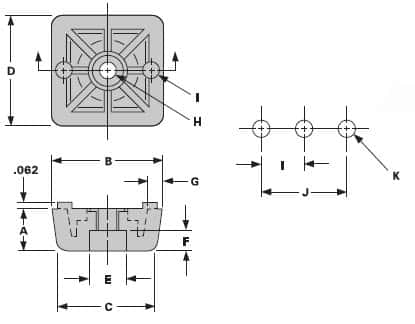

Dimensions in inches:
- Height (A): 0.344
- Width (B & D): 0.890
- Width (C): 0.794
- Recess Diameter (E): 0.333
- Recess Diameter (F): 0.142
- Outer Wall Thickness (G): 0.095
- Insert Inner Diameter (H): 0.148
Recommended Screw Size: 6
Lug Diameter (I): 0.150

Mounting Holes:
-(I): 0.328 � 0.008
-(J): 0.656 � 0.005
-(K): 0.154 + 0.004 / - .000 (#23 Drill)

Applications:
- Exercise Equipment
- Medical Equipment
- Cabinets
- Woodworking / Carpentry
- Furniture
- Large Home Appliances
- Arts and Crafts

Part Number: SQF6T
