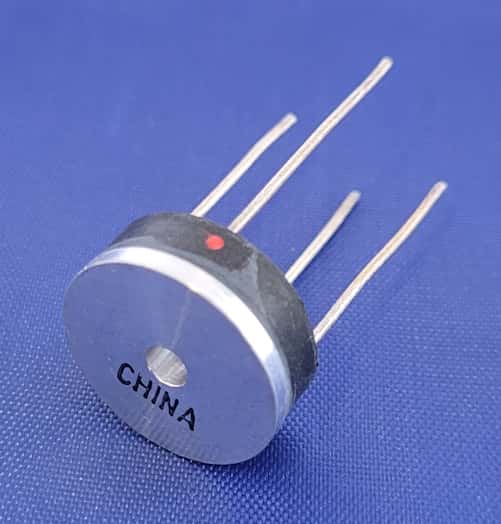

9A 600V Bridge Rectifier Single Phase Electronic Devices Inc.®

9A 600V Bridge Rectifier Single Phase Electronic Devices Inc.®

Manufacturer: Electronic Devices Inc.® (EDI®)
Part Number: BRUS260
Amps: 9
Voltage: 600
Mounting: Through Hole
Lead/Terminal Type: Wire
Number Leads/Terminals: 4
Color: Silver / Black
Shape: Round
Pitch (mm): 11.76
Termination Method: Solder
Size (mm): 12.59 x 7.62

Price: $2.00
45 available for immediate delivery
Code: DI049BPV06
Weight: 0.21oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

MINIBRIDGE™ Bridge Rectifiers
New Old Stock

Features:
- Ultra-Fast Recovery
- Single Phase
- Full Wave
- Heat Sink

Voltage: 600V
Average Output Current: 9.0A
Max. Forward Voltage Drop: 1.3V
Max.DC Reverse Current
- @ PRV and 25°C: 10.0uA
- @ PRV and 100°C: 200uA
Max. Reverse Recovery Time: 50.0ns
Storage Temperature Range: -55 to 150°C

Dimensions
Max. Diameter: 21.59mm (0.85")
Max. Thickness: 7.62mm (0.30")
Min. Lead Length: 25.4mm (1.0")

Manufactured by: Electronic Devices Inc.® (EDI®)
Part Number: BRUS260

Full Datasheet: EDI® 9A Series Wire Lead Bridge Rectifier
