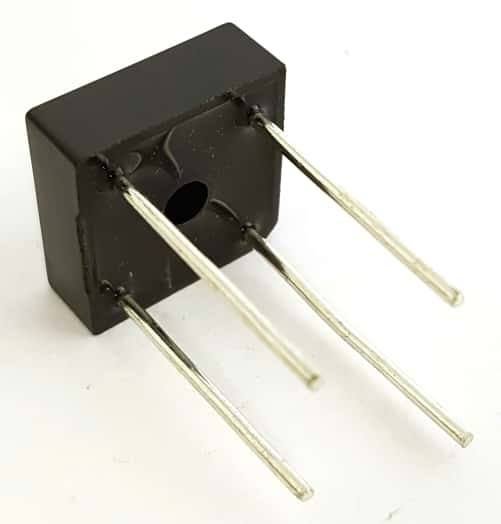

10A 1KV 1000V Single Phase Bridge Rectifier TCI TB1010

10A 1KV 1000V Single Phase Bridge Rectifier TCI TB1010

Manufacturer: TCI
Part Number: TB1010
Amps: 10
Voltage: 1000
Mounting: Through Hole
Lead/Terminal Type: Straight
Number Leads/Terminals: 4
Color: Black
Temperature: 125
RoHS Compliant: Yes
Shape: Square
Termination Method: Solder

Price: $2.60
374 available for immediate delivery
Code: DI057BPR05
Weight: 0.10oz ONZ
Volume Pricing
Quantity Price Each
1-99$2.60
100+$2.00
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$29.95
$45.01
$90.00
$39.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

Single Phase Silicon Bridge Rectifiers

Features:
- High forward surge current capability
- Ideal for printed circuit board
- Molded plastic body
- Meets UL 94V-0 flammability rating

Maximum Repetitive Peak Reverse Voltage: 1000V
Maximum RMS Voltage: 700V
Maximum DC Blocking Voltage: 1000V
Maximum Average Forward Rectified Output Current: 10.0A
Peak Forward Surge Current: 150A
Maximum Forward Voltage Drop per leg: 1.1V
Operating Temperature Range: -55 to 125 Degrees C

Dimensions (max): 19.6mm x 19.6mm x 7.6mm (0.77" x 0.77" x 0.30")

Manufactured by: TCI
Part Number: TB1010

RoHS Compliant
