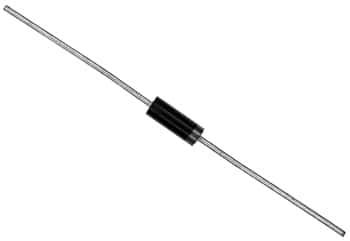

MBR340P 3A 40V Axial Schottky Diode Motorola®

MBR340P 3A 40V Axial Schottky Diode Motorola®

Manufacturer: Motorola®
Part Number: MBR340P
Amps: 3
Voltage: 40
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Material: Molded Plastic
Color: Black
Temperature: 125 C
Shape: Round (Cylindrical)
Termination Method: Solder

Price: $0.30
2953 available for immediate delivery
Code: DI091PD
Weight: 0.02oz ONZ
